furbier · Junior Joined: 27 May 2014 Posts: 2

[quote="makumba"]https://anonfiles.com/j6NbM714p8/PD_RevRoboticLib_obsolete_us_pdf
https://anonfiles.com/l9N2M71ap9/Libraries_Robotic_obsolete_V1.1.3.0_seco[/quote]

Very thank you!

bobyor · Junior Joined: 14 May 2018 Posts: 5

Could anyone who has the libraries please re-upload them? All the old links are dead. If possible, I would prefer them all in one archive. Thanks!

ztawamag · Junior Joined: 28 Oct 2018 Posts: 2

er.mehdi · Member junior Joined: 06 Jan 2014 Posts: 63

Dear all
I hope you are doing well. I have difficulties with MAX-4 servo controller during backing up the program inside the controller. Below is the details of the controller and EPAS-4 software:
Servo Drive Max-4
MAX-4/11/03/128/08/0/0/00
HW:H494A9
SW:00.10.09
EPAS-4 V00.24.03 b00 (Build Nov. 8 2007)
Problem occurs either after opening a project from PLC or opening a saved message of that program:

EPAS-4 v22 for ELAU PacDrive Max-4 Re: libs

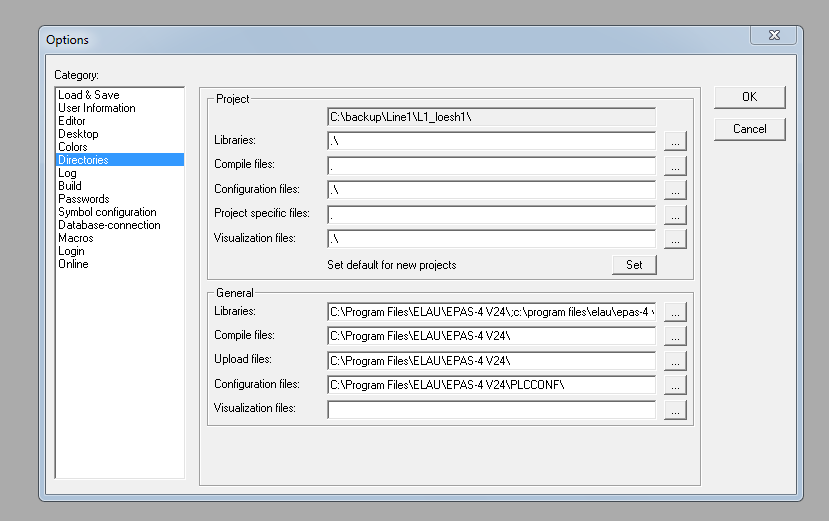

If choose Yes, it will show below message and I don't know which directory should I choose:

EPAS-4 v22 for ELAU PacDrive Max-4 Re: libs

And if I left it unchanged, it will show previous message. So if No chosen, it will show this:

EPAS-4 v22 for ELAU PacDrive Max-4 Re: libs

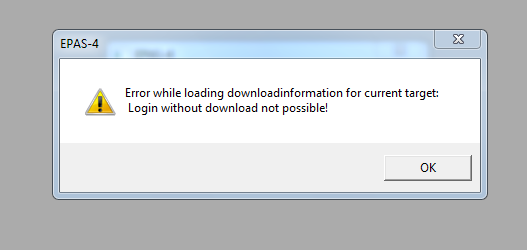

After choosing OK, it will show below message:

EPAS-4 v22 for ELAU PacDrive Max-4 Re: libs

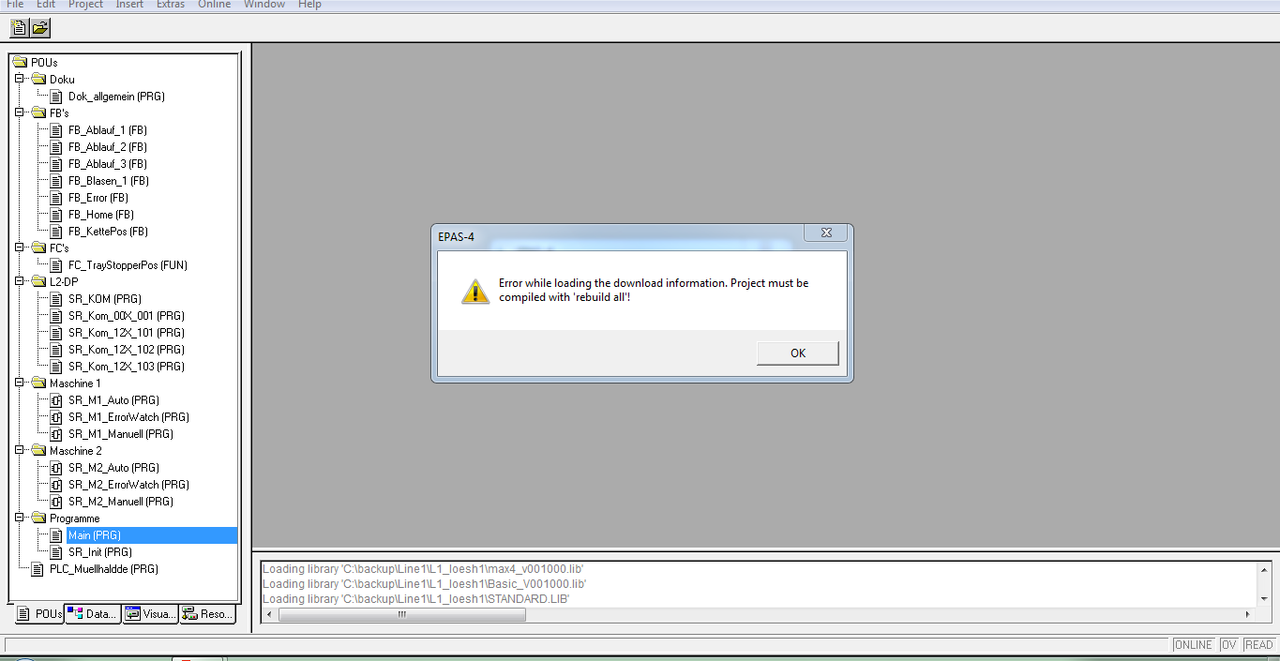

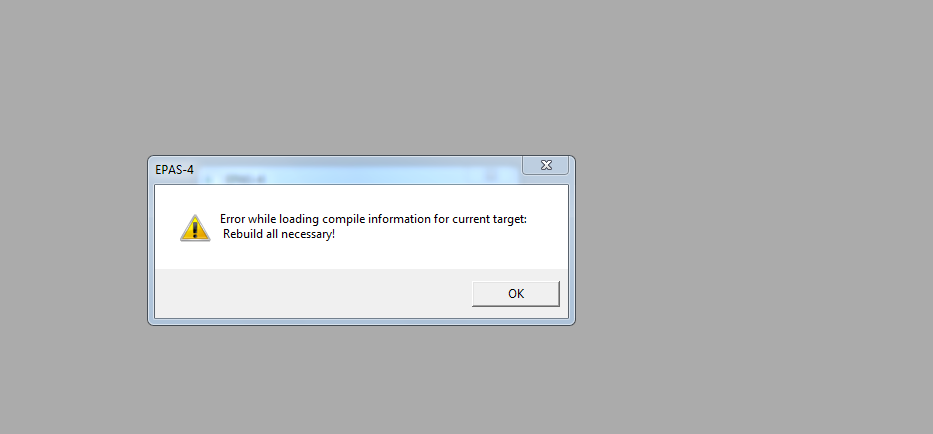

And then this one:

EPAS-4 v22 for ELAU PacDrive Max-4 Re: libs

Then I am facing with this triple option massage:

EPAS-4 v22 for ELAU PacDrive Max-4 Re: libs

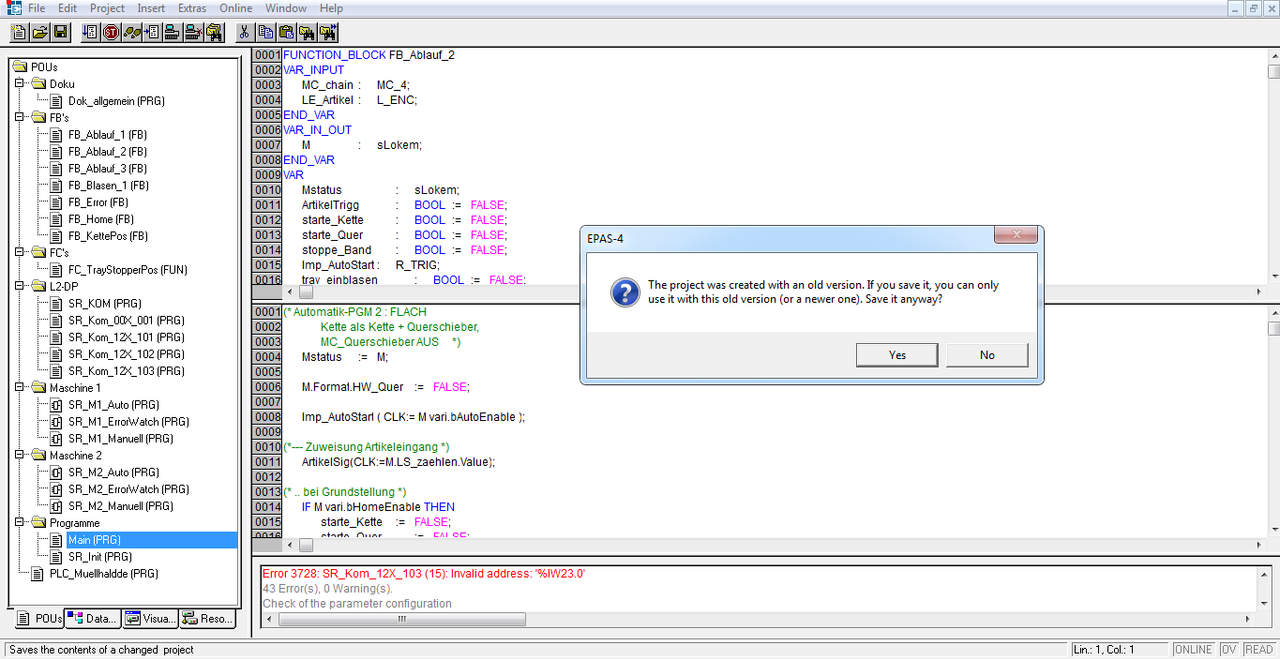

Either I choose first option or second option, there will be opened the project but when I want to save project below message will appear:

EPAS-4 v22 for ELAU PacDrive Max-4 Re: libs

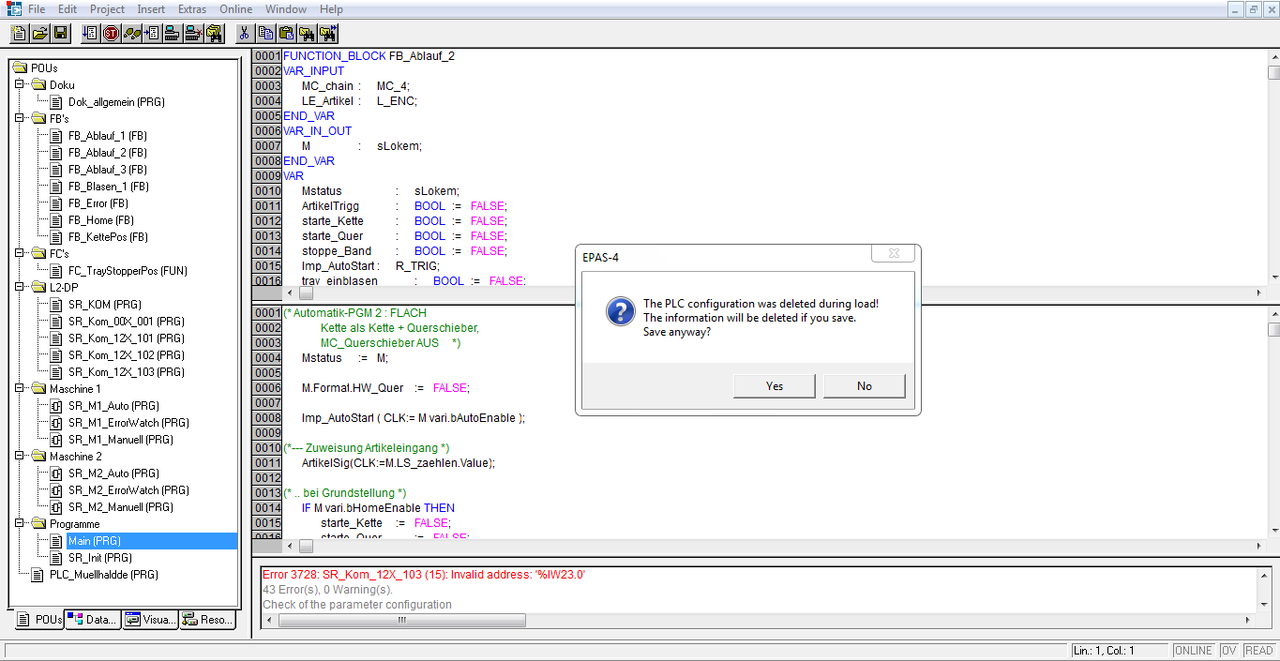

Afterwards, it will show below message:

EPAS-4 v22 for ELAU PacDrive Max-4 Re: libs

I really don't know how can I complete it, Kindly advise me on solving this.

Kind regards

Pillocram · Junior Joined: 04 Sep 2018 Posts: 2

;*************************************************************************
;*** ***
;*** Hilscher Gesellschaft fuer Systemautomation mbH ***
;*** PROFIBUS DP - Developement ***
;*** F. Faehrmann ***
;*** D-65795 Hattersheim ***
;*** Rheinstrasse 78 ***
;*** Hotline: 06190/9907-99 ***
;*** Fax: 06190/9907-50 ***
;*** ***
;*************************************************************************
;*** ***
;*** Filename: HIL_7504.GSD (c) 1997-99 ***
;*** GSD file version 3 from 3
install gsd file
[url=http://www.girlshare.ro/3770041749.1]gsd_7504.zip[/url]

Pillocram · Junior Joined: 04 Sep 2018 Posts: 2

What is the software of the PAC drive MC-4/11/03/400. (Target Version). I want to confirm that the software SW: 00.11.31 is not compatible with this PAC drive. ?
Published date: 12 July 2020

What is important is: the PLC firmware version and servodrive MC-4 firmware version have to be compatible
In general:
Firmware version consist of letter V and three numbers VXX.YY.ZZ
where:
XX - incompatible changes
YY - upwardly compatible changes
ZZ - compatible changes

Compatibility:

PacDrive M Controller FW Version - Servo Dive MC-4 FW Version

• PacDrive M Controller XX must be equal to MC-4 XX
• PacDrive M Controller YY must be greater than or equal to MC-4 YY
• PacDrive M Controller ZZ has no significance

Example: Current CX00 PLC firmware is V00.24.00. Current firmware version of servo drives MC-4 is V00.22.01.
This is OK because LC Cx00 YY is greater as MC4 YY. The best situation is if MC-4 have the same FW version as PLC.

If not, you have to change (upgrade or downgrade) the servo drive firmware to be compatible with PLC firmware by the help of software tool:
"SercosFirmwareAssistant". You can download this software for example from:
https://www.tscautomate.com/files/dir/01HWUJN4T74F2EA7AKGZG3VMGGVR7RLFFS
Find attached also the presentation how to do it.
You will need only ethernet cable to connect the PLC and the transfer the FW file to the MC-4 will be realized via Sercos ring.
You can find the files with firmware (all versions) to be downloaded to the MC-4 on the same web page as above. Please, see "PDFirmwareV24SP3".

https://www.se.com/eg/en/faqs/FA234878/

pffalfy · Junior Joined: 01 Dec 2021 Posts: 5

Elau PacDrive Diagnostics

[URL=https://www.file-upload.net/download-14803716/Elau_PacDrive_Diagnostics.zip.html]Elau_PacDrive_Diagnostics.zip[/URL]

http://www.filehost.ro/3427364127/PacDrive_Diagnostics_zip/

https://anonfiles.com/v5J5Da41x1/Elau_PacDrive_Diagnostics_zip

https://ulozto.net/file/qiEcHaQlO8kK/elau-pacdrive-diagnostics-zip

scooby · Member Joined: 25 Aug 2013 Posts: 238 Location: Dunquerque

ELAU EPAS4 V24.03 ELAU EPAS CD Service
CD_Elau_PackDrive_docs
epas-cd-service

hzln-biqu
5fhc-79fb
ep16-e978
dbst-mskc

Download
https://teraboxapp.com/s/1_CcfYKGRzh7CyxDtNoi6BQ
https://teraboxapp.com/s/16n9gAP8kEmf0pzqqFJZU1w

leonels · Junior Joined: 26 Feb 2020 Posts: 2

Thanks to all for this post, it have been usefull for me.

Now I have next problem: I upload a software using EPAS 24.03 and an aplication in a C200. I have problem with one library "Robotic_V001622.lib" that I don't have. Stead of that I rebuilded project with "Robotic_V002073.lib" that I download from the previously reply BUT the library have compilation problems:

Error 4001: ROB_FB_RobotPos5 (12): Identifier 'SERC_TYPE' not defined
Error 4001: ROB_FB_RobotPos6 (71): Identifier 'SERC_TYPE' not defined

If any can send me the password of library "Robotic_V002073.lib" or even better send "Robotic_V001622.lib".

Thanks in advance

nhosao · Junior Joined: 08 Sep 2019 Posts: 4

scooby · Member Joined: 25 Aug 2013 Posts: 238 Location: Dunquerque

nhosao · Junior Joined: 08 Sep 2019 Posts: 4

[quote="scooby"]

9haj · Member Joined: 15 Dec 2023 Posts: 179

links
https://1024terabox.com/s/1IAs7-RiNhpMrdmzMwz6_6w

angel6314 · Junior 2 Joined: 27 Aug 2019 Posts: 40

Good evening.

Does anyone have the firmware for a C600 controller?
_________________
Ing. Electronico
Automatización y Control

angel6314 · Junior 2 Joined: 27 Aug 2019 Posts: 40

Good evening.

Does anyone have the firmware for a C600 controller?
