EMC Filter Module for SIPART PS2


Post new topic   Reply to topic    plc.myforum.ro Forum Index -> Siemens Hardware & Software
View previous topic :: View next topic
Author Message
gaty
Member
Member
gaty

Joined: 01 Mar 2017
Posts: 188
PostPosted: 19/10/2018 19:12    Post subject: EMC Filter Module for SIPART PS2 Reply with quote
The current EMC Filter Module for SIPART PS2 (future: Analog Input Module) will be replaced by two new variants, one for Ex and one for non-Ex applications, each with the following extended functionality.
https://support.industry.siemens.com/cs/document/109761543/how-to-connect-the-new-emc- (aim)-module
NEW from July 2018:
6DR4004-6F EMC Filter Module / Analog Input Module (AIM) - Ex
Features:
Connection of external position detection systems with 3, 5 and 10 KOhm, configurable via switches.

6DR4004-8F EMC Filter Module / Analog Input Module (AIM) – non Ex
Features:
External position detection systems connectable with 3, 5 and 10 KOhm, 4-20mA and 0/2-10V, configurable via switches.

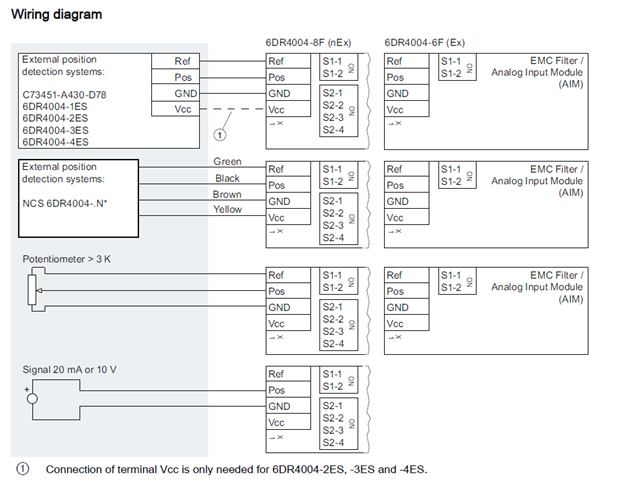

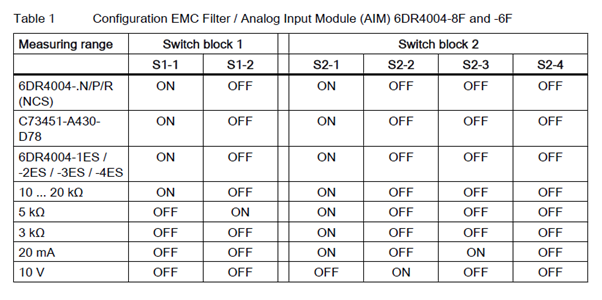

how to setup the modules:
EMC Filter Module for SIPART PS2 EMC Filter Module for SIPART PS2
EMC Filter Module for SIPART PS2 EMC Filter Module for SIPART PS2
