Efficient engineering of interlocking with PCS 7 Logic Matrix
https://support.industry.siemens.com/cs/document/109482621/
The application example describes the creation and visualization of interlocking using the PCS 7 Logic Matrix. It provides step-by-step instructions and an example project to demonstrate the visualization and the functionalities.
Task
The basic automation tasks in process automation involve the creation of logic operations. The main tasks of the logic operations are:

Permission
Protect
Interlocking
Typical interlocking functions include stopping a pump with a closed valve or preventing a mixer from starting if the minimum fill level is not reached. Other reasons for interlocking can be, for example, high temperature or pressure.
Using the example of a stirred tank reactor the typical interlocking functions should be created. A fundamental requirment is to create the interlocking function in such a way that in case of interlocking, the operator can find and resolve the cause quickly.

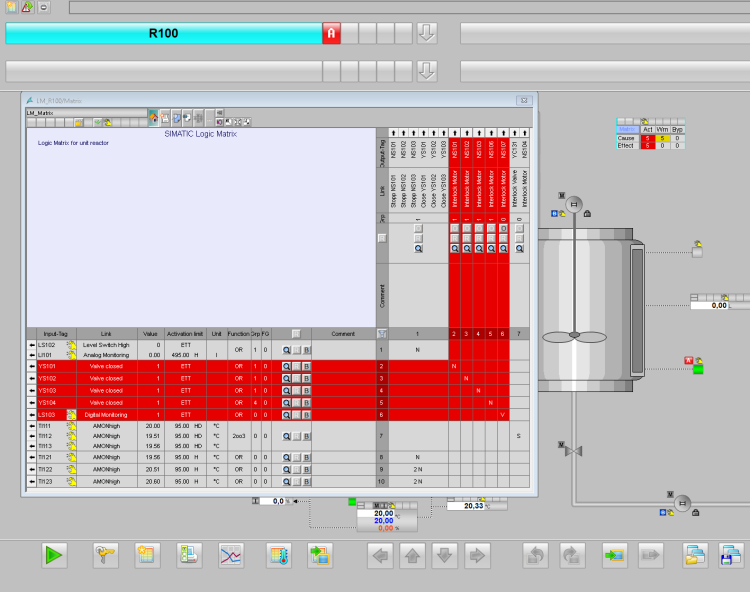

Efficient engineering of interlocking with PCS 7 Logic Matri Efficient engineering of interlocking with PCS 7 Logic Matri

Efficient engineering of interlocking with PCS 7 Logic Matri Efficient engineering of interlocking with PCS 7 Logic Matri

Solution
You can use the PCS 7 Logic Matrix to implement the automation task.

The PCS 7 Logic Matrix is a tool for creating and visualizing interlocking with up to 125 causes and up to 125 effects. A cause reprecents a logical with up to six inputs (three analog abd three digital), whose results is good or bad, and whose effect can be transmitted via so-called nodes (intersections) to effects with one or more outputs. This allows each cause to act on each effect or even on just a part of the effects.

The application example describes the creating of the interlocking function with the Logic Matrix Editor as well as the operation and the function of the Logic Matrix Viewer on the OS. The example project contains all described components and can be used for demonstration purposses or to the selfstudy.

Benefits
The creation of interlocking with PCS 7 Logic Matrix offers the following benefits:
Clear display of interlocking using the Logic Matrix Editor according to the causes and effects principle
Simple modification and optimization of interlocking
More efficiency compared to the "standard" interlock at CFC level
Integrated alarm messages for status changes of cause and effect
Cleare representation of interlocking in the OS runtime
Filter options for rapid location of the interlocking cause within the OS runtime
Time and cost savings in engineering and operation

Documentation and demo project
https://support.industry.siemens.com/cs/attachments/109482621/109482621_Logic_Matrix_PCS7_V100_DOC_V2_1_en.pdf
https://support.industry.siemens.com/cs/attachments/109482621/109482621_Logic_Matrix_PCS7_V100_PROJ_V2_1.zip

Download Url File name
https://dfiles.com/files/l2hnfafgm 109482621_Logic_Matrix_PCS7_V100_PROJ_V2_1.zip
https://dfiles.com/files/9oinuukbv 109482621_Logic_Matrix_PCS7_V100_DOC_V2_1_en.pdf
