SIMATIC Multipoint Charging Application ECarChargingSuite
https://support.industry.siemens.com/cs/document/109782352/
The ECarChargingSuite is a scalable software application which allows you to realize a modular and compact multi charging system for AC and DC.
This application example is build to be able to expand it over the time to deal with the increasing number of electrical vehicles.

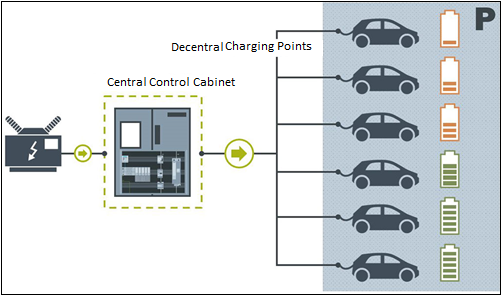

ECarChargingSuite SIMATIC Multipoint Charging Application ECarChargingSuite SIMATIC Multipoint Charging Application

ECarChargingSuite SIMATIC Multipoint Charging Application ECarChargingSuite SIMATIC Multipoint Charging Application

The application example contains the modules:
Handling of TM ECC 2xPWM & TM ECC PL ST
OCPP1.6 Communication to Backends
Peak load management
Authentication (RFID)
Energy measurement (PAC1600, 7KT,…)

The SIEMENS hardware offers you to build up a modular charging system by adding some charging specific hardware like the charging plug.

The ET 200SP TM ECC 2xPWM ST and TM ECC PL ST are the essential modules for your charging system.
This modules build up the communication to the car and manage the behavior of the charging process, lock and other things.
