EC-Engineer EtherCAT Tool V3.0.4
EC-Engineer is a tool for configuring and diagnosing EtherCAT networks. The integrated Windows EtherCAT master can automatically detect the connected EtherCAT slaves by means of a scan function. Based on the ESI (EtherCAT Slave Information) files and other parameters that the user can select, the EC-Engineer generates the configuration for the EtherCAT master, the so-called ENI (EtherCAT
Network Information) file. This feature is not included in the Free Edition. The content and format of the ESI and ENI files are part of the EtherCAT specification. Further information is available on the website of the EtherCAT Technology Group User Organization www.ethercat.org.

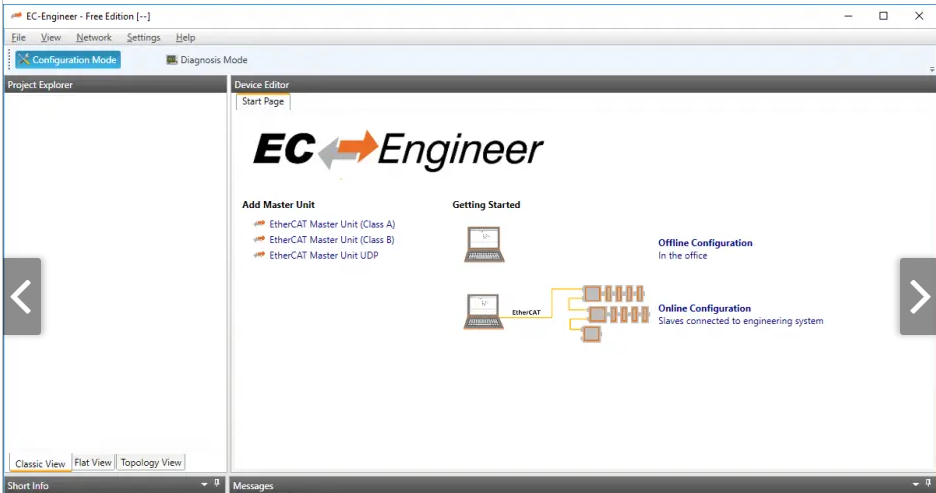

EC-Engineer EtherCAT Tool V3.0.4 EC-Engineer EtherCAT Tool V3.0.4

EC-Engineer EtherCAT Tool V3.0.4 EC-Engineer EtherCAT Tool V3.0.4

Once the connection to the EtherCAT master has been established, both master and slaves can be analyzed. This includes the display of states and process data, but also more complex functions such as reading the object directories or uploading new slave firmware. In addition, the program displays errors in communication and slave errors. The Free Edition of the EC-Engineer supports a maximum of five slaves and can not export an ENI file.

https://ulozto.net/file/dLbaDaIJB1Bs/ec-engineer-free-v3-0-4-zip
[URL=https://www.file-upload.net/download-13721113/EC-Engineer_Free_V3.0.4.zip.html]EC-Engineer_Free_V3.0.4.zip[/URL]
https://anonfile.com/QdTbF355n9/EC-Engineer_Free_V3.0.4_zip
