DMK file vor 1768-L43


Post new topic   Reply to topic    plc.myforum.ro Forum Index -> ALLEN-BRADLEY(Rockwell Automation) Reg. U
View previous topic :: View next topic
Author Message
alfa1962
Junior
Junior


Joined: 24 Aug 2013
Posts: 6
PostPosted: 13/07/2021 12:40    Post subject: DMK file vor 1768-L43 Reply with quote
Dear All,

I need a *.dmk file with the firmware version 17.xxx for 1768-L43.
Do you know how I can create a dmk file from NVS, BIN and RES files from a previous version of CompactFlash v9.00.15
Best regards,
Back to top
View user's profile Send private message
Technogeek
Junior 2
Junior 2


Joined: 06 Apr 2019
Posts: 36
PostPosted: 13/07/2021 19:37    Post subject: Re: DMK file vor 1768-L43 Reply with quote
alfa1962 wrote:
Dear All,

I need a *.dmk file with the firmware version 17.xxx for 1768-L43.
Do you know how I can lucrate a dmk file from NVS, BIN and RES files from a previous version of CompactFlash v9.00.15
Best regards,


try firmware
https://ulozto.net/file/IrNK8b2ABj6o/1768-l4x-17-012-fw-exe
https://anonfiles.com/X576n86bu4/1768-L4x_17.012.FW_exe

1. Consider the following before you install the ControlFLASH software, version 9:
We recommend that you install RSLinx® communication software, version 2.057, before you install ControlFLASH software, version 9 (CPR9 SR3).
If you install RSLinx communication software, version 2.057, before you install ControlFLASH software, version 9, you can enable or disable the FactoryTalk® Security platform during ControlFLASH software, version 9, installation. However, to disable the FactoryTalk Security platform, you must first uninstall ControlFLASH software, version 9, then reinstall it.
If the FactoryTalk Security platform is enabled during ControlFLASH software, version 9, installation, the software opens with a Select FactoryTalk Directory dialog box. At that dialog box, click the following:
Network
Local
Cancel
If you click Cancel, you must select a directory.
ControlFLASH software, version 9, integrates the FactoryTalk Security platform in only version 2.030 or later of the FactoryTalk Services Platform.
2. If your controller is connected to a DH-485 network, disconnect it from the DH-485 network before you upgrade the firmware of the controller. If you upgrade the firmware of a controller while it is connected to a DH-485 network, communication on the network can stop.
3. Loss of communication or power during a controller firmware upgrade can result in rejection of new firmware by the controller. Loss of communication or power during a controller firmware upgrade can result in rejection of new firmware by the controller. If the controller firmware upgrade fails due to such loss, take the following corrective actions:
Cycle controller power with the battery disconnected for 2…3 minutes, then successfully complete the upgrade.
If a nonrecoverable fault occurs, atingere Rockwell Automation® Technical Support for a ticket number and return the controller for factory repair.
ControlFLASH_V15.05.00 CF+_V4.00.00

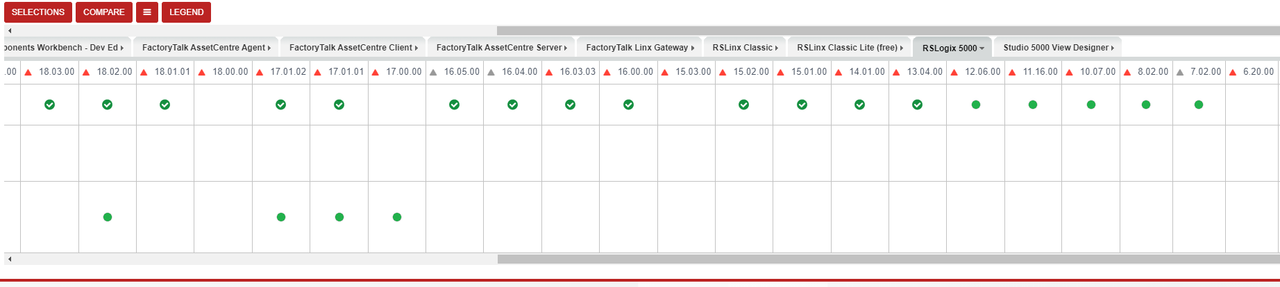

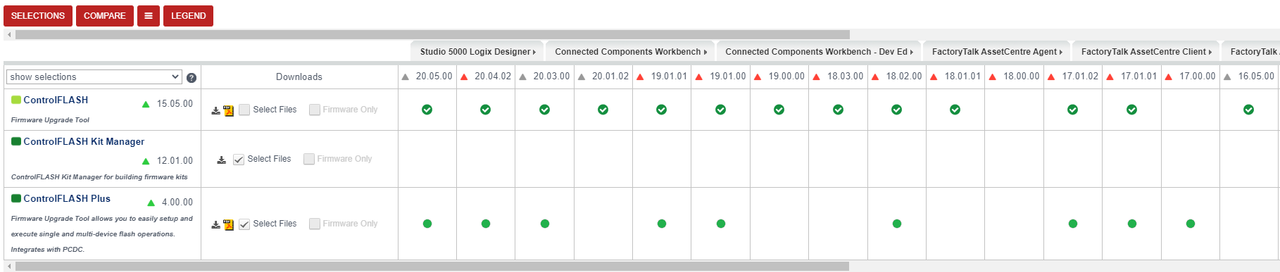

Compatibility RSLogix
DMK file vor 1768-L43 Re: DMK file vor 1768-L43
DMK file vor 1768-L43 Re: DMK file vor 1768-L43

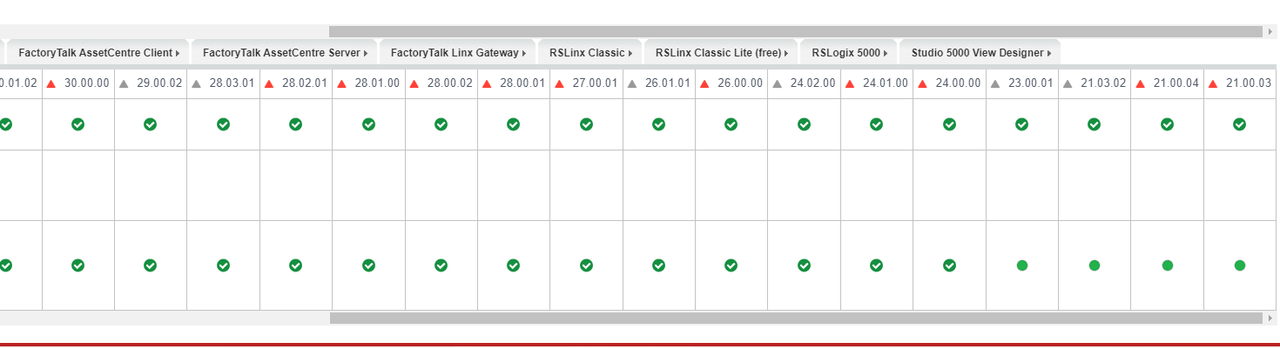

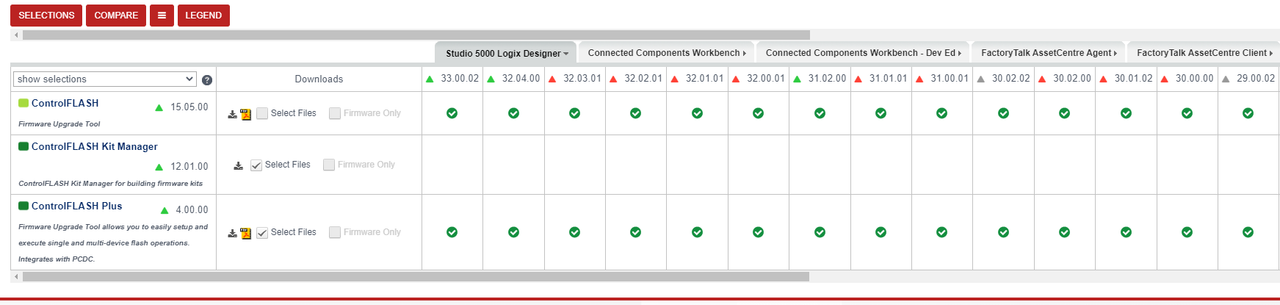

Compatibility Studio
DMK file vor 1768-L43 Re: DMK file vor 1768-L43
DMK file vor 1768-L43 Re: DMK file vor 1768-L43
ControlFLASH Kit Manager V12.01.00
Download
https://ulozto.net/tamhle/ICFF9LfXfzhx/

https://anonfiles.com/B9Jend6bu8/ControlFLASH_Plus_3.00.00_released_9_2019_-_4.00.00_released_12_2020_pdf
https://anonfiles.com/HaJcnf6du6/ControlFLASH_15.02.00_released_9_2019_-_15.05.00_released_3_2021_pdf
https://anonfiles.com/J8J4nb68u5/ControlFLASH_15.05.00_released_3_2021_pdf
https://anonfiles.com/L6Jen466u9/ControlFLASH_Plus_4.00.00_released_12_2020_pdf
https://anonfiles.com/Z1Jdn768ue/KitManagerInstaller_msi
https://anonfiles.com/d3K8nb60u4/1768-um001_-en-p_pdf
https://anonfiles.com/Z8N6n267u2/ControlFLASH_V15.05.00_zip
https://anonfiles.com/fdQ4n867ue/CF_V4.00.00_zip
https://anonfiles.com/D8f0o76eu6/CF_V4.00.00_wFTSP_6.20.00_zip
Back to top
View user's profile Send private message
alfa1962
Junior
Junior


Joined: 24 Aug 2013
Posts: 6
PostPosted: 16/07/2021 20:10    Post subject: DMK file vor 1768-L43 Reply with quote
Dear Technogeek,

Thank you very much for your complete answer.

Best regards
Back to top
View user's profile Send private message
alfa1962
Junior
Junior


Joined: 24 Aug 2013
Posts: 6
PostPosted: 23/07/2021 13:06    Post subject: DMK file vor 1768-L43 Reply with quote
Dear Technogeek,

The firmware 17.012 for 1768-L43 is not good because the PLC is from the D series and the good version of firmware is 17.013.
Unfortunately the version 17.013 is not available for download from Rockwell site.
can you have it?
Best regards
