Diagnostics and Control of Network components with SIMATIC S7 PN-CPUs using SNMP
https://support.industry.siemens.com/cs/document/57249109/
The status of SNMP-capable network components is monitored and controlled, if applicable, by network management systems (such as SINEC NMS) via SNMP (Simple Network Management Protocol).
The blocks of the library "LSnmp" also allow a SIMATIC S7-CPU with a PROFINET interface to retrieve information from the network components and control them where applicable as a simple SNMP manager.

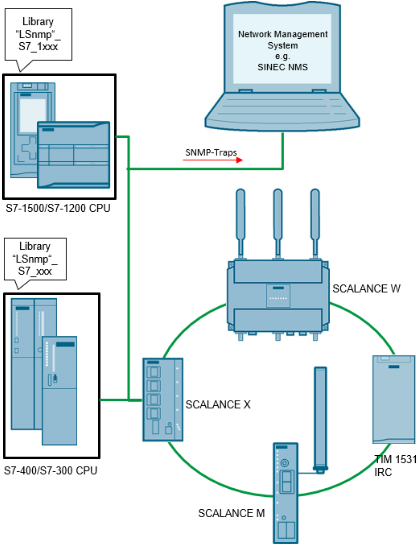

The following figure shows one possible system configuration in which the SNMP blocks of the "LSnmp" library can be used.
Diagnostics and Control of Network components using SNMP Diagnostics and Control of Network components using SNMP
The "LSnmp" library contains the following core modules:
Code:
"LSnmp_Get" module for retrieving an SNMP variable
"LSnmp_GetNext" module for retrieving consecutive SNMP variables
"LSnmp_GetBulk" module for retrieving SNMP variables in blocks
"LSnmp_Set" module for writing SNMP variables
"LSnmp_SwitchIO" for controlling and retrieving the digital IO of a
SCALANCE W
"LSnmp_SendTrap" module for sending SNMP traps.


Note
If using an S7-300/S7-400, the value of an OID element is limited to a maximum of 16383.
If using an S7-1500/S7-1200, you must use an "optimized module access".
https://support.industry.siemens.com/cs/attachments/57249109/57249109_SNMP_S7_CPU_LIB_V4_0_en.pdf
This Library is valid for S7-1200/ S7-1500/ S7-300/ S7-400 CPUs and STEP 7 V15.1, Update 3
https://support.industry.siemens.com/cs/attachments/57249109/57249109_SNMP_S7_CPU_LIB_V15_1_V40.zip
This Library is valid for S7-1200/ S7-1500/ S7-300/ S7-400 CPUs and STEP 7 V16
https://support.industry.siemens.com/cs/attachments/57249109/57249109_SNMP_S7_CPU_LIB_V16_V40.zip
Here you download the older Version of this entry with STEP 7 V5.5.
https://support.industry.siemens.com/cs/attachments/57249109/57249109_Archiv_SNMP_Library_V55.zip
Downloads
https://ulozto.net/tamhle/QUjwMuGQsbLj

https://bayfiles.com/V7Wb4ej1o8/57249109_Archiv_SNMP_Library_V55_zip
https://bayfiles.com/Z9We41jcod/57249109_SNMP_S7_CPU_LIB_V4_0_en_pdf
https://bayfiles.com/lbX343j6o8/57249109_SNMP_S7_CPU_LIB_V16_V40_zip
https://bayfiles.com/v6X64cj5of/57249109_SNMP_S7_CPU_LIB_V15_1_V40_zip
