ivan bratanov · Junior Joined: 23 Aug 2019 Posts: 15

Hello, I have a brand new Delta DOP-BV107 panel, a Inovance H2U PLC and a dedicated communication cable DOP-FX. I'm having troubles with connecting them together. I need to know what kind of settings to use - data bits, parity, stop bits and station addresses for each device?

Thank you!

dionni · Junior Joined: 24 Jan 2018 Posts: 1

https://delta-ia-tips.com/hmi-tips-tricks/
https://delta-ia-tips.com/2012/09/11/hmi-hmi-plc-plc-communication-example-multidrop/

https://delta-ia-tips.com/2012/07/23/hmi-plc-communication-example-ethernet/

https://delta-ia-tips.com/2011/02/09/hmi-3-plc-communication-example/

PLC type Inovance H2U/H1U

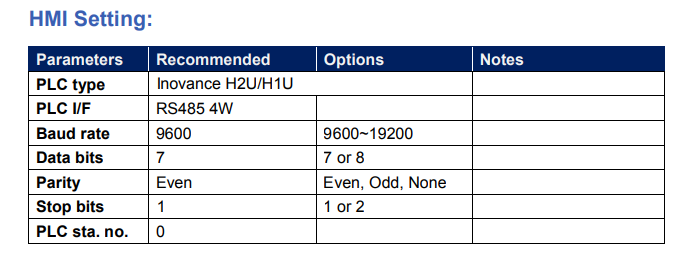

Delta DOP-107BV to Inovance H2U PLC connection.

Delta DOP-107BV to Inovance H2U PLC connection.

xmh · Junior Joined: 08 Dec 2019 Posts: 1

Delta PLC/HMI Cable Selection Guide

[url]https://www.upload.ee/files/10819717/DELTA_IA-PLC_ALL_OM_EN_20151113.pdf.html[/url]

PLC_connection_guide
[url]https://www.upload.ee/files/10819742/PLC_connection_guide.pdf.html[/url]

There is not DOP-FX cable. :o)

ivan bratanov · Junior Joined: 23 Aug 2019 Posts: 15

[url=http://www.99poze.ro/p/7526d7be58f472efd364ecfbd6fdb1f3.jpg] Delta DOP-107BV to Inovance H2U PLC connection.

[/url]+

It's just the name of the cable according to the seller.

ivan bratanov · Junior Joined: 23 Aug 2019 Posts: 15

[quote="ivan bratanov"][url=http://www.99poze.ro/p/7526d7be58f472efd364ecfbd6fdb1f3.jpg] Delta DOP-107BV to Inovance H2U PLC connection.

[/url]+

It's just the name of the cable according to the seller.

P.S. - I think I was wrong from the very beginning. The communication between HMI and PLC in my case should be RS-422. Yesterday I got some extra message from the seller in which he clears that the protocol should be RS-422, not RS-232.
