Connecting the SIMATIC RF300 and RF600 to OMRON controllers
https://support.industry.siemens.com/cs/document/109757881/connecting-the-simatic-rf300-and-rf600-to-omron-controllers
To operate the SIMATIC Ident RFID readers RF300 and RF600 on an OMRON controller, you need suitable modules so that the controller can communicate with the Ident system.
To operate the SIMATIC RF300 and SIMATIC RF600 Ident Systems on an OMRON controller, you need compatible blocks for the OMRON configuration software "Sysmac Studio".

With this article we provide you with the suitable block library "Simatic Ident" and an example project. The library contains all necessary components and data types to program the RFID functions of the Ident systems in Sysmac Studio. In the example project you will find ready-made programs for the operation of the readers.

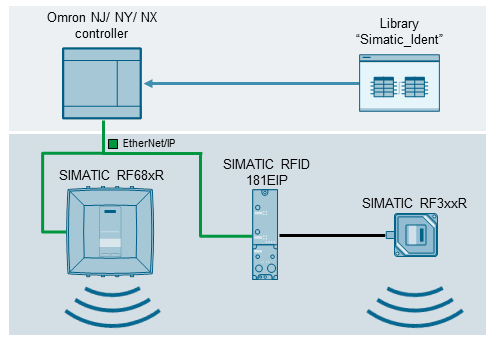

The example is valid for the OMRON controllers NJ, NY and NX. The connection between the devices is made via EtherNet/IP and is configured using the "Network Configurator". You can connect the SIMATIC RF600 Ident System directly to the OMRON controllers. For RF300 you also need the SIMATIC RFID 181EIP communication module.
Connecting the SIMATIC RF300 and RF600 to OMRON controllers Connecting the SIMATIC RF300 and RF600 to OMRON controllers

Connecting the SIMATIC RF300 and RF600 to OMRON controllers Connecting the SIMATIC RF300 and RF600 to OMRON controllers

Documentation and example project
https://support.industry.siemens.com/cs/attachments/109757881/109757881_RF300_RF600_IdentProfile_Omron_DOC_V10_en.pdf
https://support.industry.siemens.com/cs/attachments/109757881/109757881_RF300_RF600_IdentProfile_Omron_CODE_V10.zip
