Connecting S7 stations and OPC UA stations to SIMATIC CloudConnect 716 (as OPC UA server) via Ethernet and Profibus
https://support.industry.siemens.com/cs/document/109772282/connecting-s7-stations-and-opc-ua-stations-to-simatic-cloudconnect-716- (as-opc-ua-server)-via-ethernet-and-profibus
The Industrial IoT Gateway SIMATIC CloudConnect 7 fulfills two tasks: 1) It queries (reads) defined data points from lower-level stations that understand S7 communication or OPC UA. 2) It sends the data points to diverse cloud plattforms via the protocol MQTT or provides them as an OPC UA server to OPC UA clients.
The application example encompasses the following points:
connect different stations to SIMATIC CloudConnect 716 (SIMATIC CC7) and define data points for each station that SIMATIC CC7 shall query
configure SIMATIC CC7 als OPC UA server that sends the queried data to an OPC UA client (here: UaExpert)
develop an information model with SiOME that determines how SIMATIC CC7 structures the queried data as an OPC UA server
certificate handling

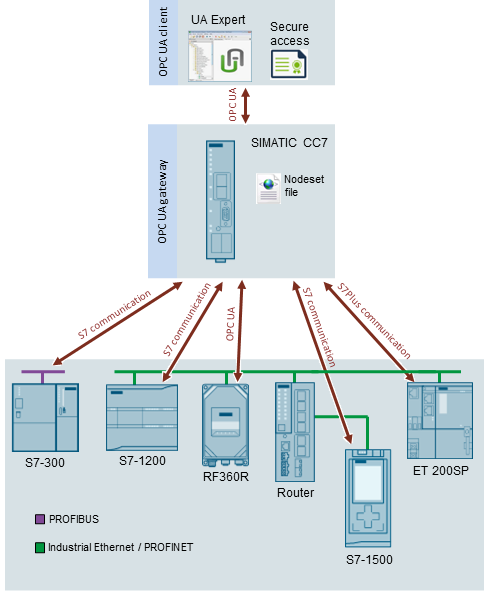

The following communication partners are connected to SIMATIC CC7:
S7 stations
SIMATIC S7-300 (S7 communication, Profibus)
SIMATIC S7-1200 (S7 communication, Ethernet)
SIMATIC S7-1500 in a lower-level subnet (S7 communication, Ethernet)
SIMATIC ET 200SP (S7Plus communication)
OPC UA station: SIMATIC RF360R

Connecting S7 stations and OPC UA stations CloudConnect 716 Connecting S7 stations and OPC UA stations CloudConnect 716

Connecting S7 stations and OPC UA stations CloudConnect 716 Connecting S7 stations and OPC UA stations CloudConnect 716

Performance measurement of communication
Based on the application example, we offer performance data for communication between S7 stations and an OPC UA client through a CC716 as OPC UA gateway. In the Downloads section, you can download the data and the description of the measurement setup.

Downloads
[URL=https://www.file-upload.net/download-15319652/109772282_OPC-UA_CC7_Performance_DOC_V1_0_en.pdf.html]109772282_OPC-UA_CC7_Performance_DOC_V1_0_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15319651/109772282_CC7-CommPerformance_DATA_V1_0.zip.html]109772282_CC7-CommPerformance_DATA_V1_0.zip[/URL]
[URL=https://www.file-upload.net/download-15319653/109772282_CloudConnect_OPC_UA_DOC_V3_0_en.pdf.html]109772282_CloudConnect_OPC_UA_DOC_V3_0_en.pdf[/URL]

Connecting S7 stations to an MQTT broker via CloudConnect 716 is covered in a separate application example
https://support.industry.siemens.com/cs/document/109820894/connecting-s7-stations-to-an-mqtt-broker-via-simatic-cloudconnect-716

[URL=https://www.file-upload.net/download-15319659/109820894_CloudConnect_MQTT_DOC_V20_en.pdf.html]109820894_CloudConnect_MQTT_DOC_V20_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15319661/109820894_CloudConnect_MQTT_PROJ_V20.zip.html]109820894_CloudConnect_MQTT_PROJ_V20.zip[/URL]
