PostPosted: 05/11/2020 16:45    Post subject: Communication between SIMATIC HMI Panels and G120 Reply with quote
Communication between SIMATIC HMI Panels and SINAMICS frequency inverter G120 for operating and for displaying alarm and error messages (direct connection, without PLC)
https://support.industry.siemens.com/cs/document/109481157/
Direct connection between SIMATIC HMI Panel and SINAMICS G120 frequency inverter. Made possible to operate frequency inverters and dispalying alarm and error messages via text list, without PLC.
This application example shows how the communication between a SIMATIC HMI panel and a SINAMICS G120 can be established without a SIMATIC S7 controller. The following example describes how you can switch the converter on and off via a SIMATIC panel and how you can preset a setpoint speed value and how you can display the actual speed value on the panel. Warning and error messages are displayed via the alarm view.

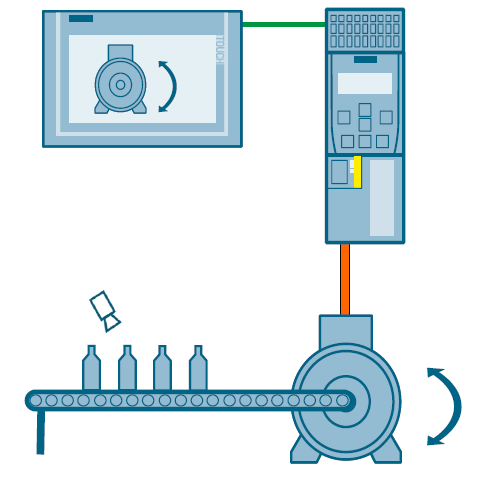

Communication between SIMATIC HMI Panels and G120 Communication between SIMATIC HMI Panels and G120
Downloads
https://support.industry.siemens.com/cs/attachments/109481157/109481157_HMI_FU_DOKU_v13_en.pdf
https://support.industry.siemens.com/cs/attachments/109481157/109481157_HMI_FrequencyConverter_CODE_V16.zip
https://support.industry.siemens.com/cs/attachments/109481157/109481157_HMI_FrequencyConverter_CODE_V13.zip

[URL=https://www.file-upload.net/download-14348614/109481157_HMI_FrequencyConverter_CODE_V13.zip.html]109481157_HMI_FrequencyConverter_CODE_V13.zip[/URL]
[URL=https://www.file-upload.net/download-14348613/109481157_HMI_FrequencyConverter_CODE_V16.zip.html]109481157_HMI_FrequencyConverter_CODE_V16.zip[/URL]
[URL=https://www.file-upload.net/download-14348612/109481157_HMI_FU_DOKU_v13_en.pdf.html]109481157_HMI_FU_DOKU_v13_en.pdf[/URL]

https://ulozto.net/tamhle/I2uxsvGjt5zu

https://bayfiles.com/348cX4m2pb/109481157_HMI_FU_DOKU_v13_en_pdf
https://bayfiles.com/Dc8cXdm6pd/109481157_HMI_FrequencyConverter_CODE_V16_zip
https://bayfiles.com/J38aX0m8p3/109481157_HMI_FrequencyConverter_CODE_V13_zip
