Commissioning support for ET 200SP CM 1xDALI-Modules
https://support.industry.siemens.com/cs/document/109771151/
The following example presents two different ways of commissioning a DALI system. The application example serves as a basis and contains the basic functionalities.
A graphical user interface helps enable straightforward commissioning of a DALI system. An HMI or the user-defined website are used to make basic settings to the DALI devices, thus enabling an initial commissioning without TIA Portal.

For this application example, two DALI modules, five DALI ballast units and two DALI sensors are used.

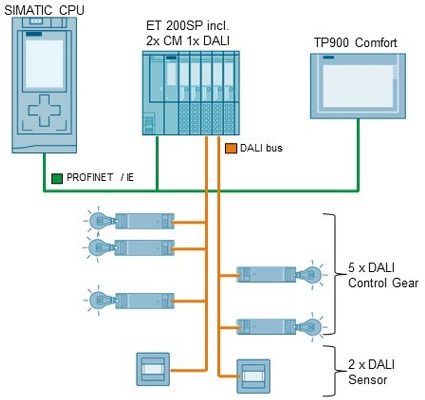

The following figure shows the structure of the system.

Commissioning support for ET 200SP CM 1xDALI-Modules Commissioning support for ET 200SP CM 1xDALI-Modules

Commissioning support for ET 200SP CM 1xDALI-Modules Commissioning support for ET 200SP CM 1xDALI-Modules

The application example contains the following basic functionalities:

Functions DALI ballast units
On/off switching of DALI ballast units (e.g. lamps)
On/off switching of groups
Scan DALI bus for group members and assign free short addresses
Display assigned short addresses
Change assigned short addresses
Identification of group members
Setting and readout of group assignments of ballast units
Setting and readout of basic parameters of ballast units
Functions DALI Sensors

Search DALI bus for sensors and assign free short addresses
Display of assigned short addresses
Change assigned short addresses
Reading out the sensor status
Saving the sensor data in the DALI CM
Deleting the sensor data from the DALI CM
Setting and reading of sensor parameters

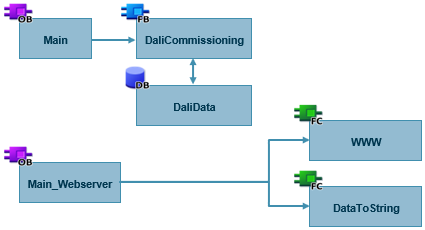

Principle of operation
The function block (FB) "DaliCommissioning" contains all function calls relevant to the application example. The FB reads out the data from the DALI devices and saves the information in the "DaliData" data block (DB). The data in the DB "DaliData" are displayed at the HMI or via the user-defined webpages of the controller. There you can modify the data and then write them back to the DALI devices with the FB "DaliCommissioning". You can also execute individual functions using the HMI or user-defined webpages.

Commissioning support for ET 200SP CM 1xDALI-Modules Commissioning support for ET 200SP CM 1xDALI-Modules

Documentation and STEP 7 V17 Project with DALI sensor evaluation
https://support.industry.siemens.com/cs/attachments/109771151/109771151_ConfigDaliModule_DOC_v11_en.pdf
https://support.industry.siemens.com/cs/attachments/109771151/109771151_ConfigDaliModule_PROJ_v11.zip

Documentation and STEP 7 V15.1 Project without DALI sensor evaluation
https://support.industry.siemens.com/cs/attachments/109771151/109771151_ConfigDaliModule_DOC_v10_en.pdf
https://support.industry.siemens.com/cs/attachments/109771151/109771151_ConfigDaliModule_PROJ_v10.zip

https://ulozto.net/tamhle/odps2BKNOj81/

[URL=https://www.file-upload.net/download-15048990/109771151_ConfigDaliModule_PROJ_v10.zip.html]109771151_ConfigDaliModule_PROJ_v10.zip[/URL]
[URL=https://www.file-upload.net/download-15048989/109771151_ConfigDaliModule_DOC_v10_en.pdf.html]109771151_ConfigDaliModule_DOC_v10_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15048991/109771151_ConfigDaliModule_PROJ_v11.zip.html]109771151_ConfigDaliModule_PROJ_v11.zip[/URL]
[URL=https://www.file-upload.net/download-15048992/109771151_ConfigDaliModule_DOC_v11_en.pdf.html]109771151_ConfigDaliModule_DOC_v11_en.pdf[/URL]
