 Posted: 31/03/2020 08:07 Post subject: CAN communication Library TIA Portal V15.1 |
 |
|
Library for CAN communication module - TIA Portal V15.1 or higher.
https://support.industry.siemens.com/cs/document/109775840/
This aparte function block transfers assigned parameters to the ET 200SP Communication module CAN (6ES7 137-6EA00-0BA0). Install the supplied HSP and the additional TIA Portal library (function block). The HSP generates a data block with the configuration of the module. The function block then transfers the configuration in the runtime process.

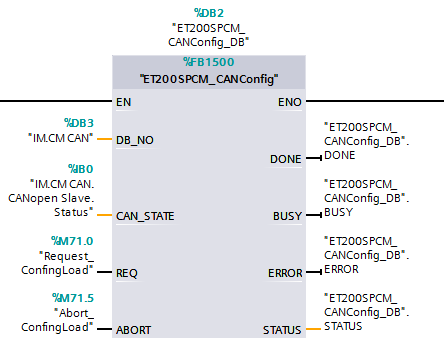

Drag the corresponding function block from the global library to your program blocks
according to the selected CPU:
CPUs 1500: ET200SPCM_CANConfig
CPUs 1200: ET200SPCM_CANConfig_1200
Open Controller: ET200SPCM_CANConfig_1515_PC
The user-defined documentation of the function block can displayed with Shift + F1
Further information about the function blocks can be found in the module manual.
https://support.industry.siemens.com/cs/attachments/109775840/ET200SP_CM_CAN.zip
https://anonfile.com/7d49G5k7o7/ET200SP_CM_CAN_zip
https://ulozto.net/file/ieqCr7aZzRue/et200sp-cm-can-zip |
|
