maersk · Member 3 Joined: 17 Aug 2014 Posts: 891

BRAUMAT with STEP 7 - Additional functions for BRAUMAT
https://support.industry.siemens.com/cs/document/80142364/braumat-with-step-7-additional-functions-for-braumat
BRAUMAT Operator Manual
The document "BRAUMAT Operator Manual" is intended for operators, maintenance personnel and administrators of BRAUMAT systems.
The following components are included:
Compact manual for operators
Compact manual for maintenance personnel
Compact manual for administrators

"PULSES" (pulse/pause) automation function
The "PULSES" function allows the generation of binary pulse sequences.
Typical applications:
Flushing of various CIP valves
Pulse for the injection of substances (injection ON/OFF)
Switching ON of outputs (one by one)
Switching OFF of outputs (one by one)
Switching OFF of outputs for just a specific time
Changing subsequent pulses depending on the selected mode (activate/deactivate specific outputs)
Starting and stopping the malt conveyor belts and closing the malt lifting system

"TankCooling" (cooling zone block) automation function
The "TankCooling" function enables the generation of various cooling zones in a tank.
Typical applications:
To keep a setpoint temperature
Fermentation
Maturation
Ramp function to achieve a setpoint temperature in a predetermined time
Temperature and time monitoring

Seat Lifting Block (SLB) automation function
The Seat Lifting Block (SLB) allows double seat valves (DSV) to be controlled.
Typical applications include:
Separate control of the main valve and the seat liftings
Interlocks for the main valve and seat liftings
Parameterizable peripheral assignment with adjustable end position monitoring
External pulse/pause mode for synchronized flushing of the dublu seat valves in groups
Internal pulse/pause mode for individual rinsing
Braumat OCX faceplate for "double seat valve control" (combined valve and seatlifting control) and parametrization.

Documentation and library - BRAUMAT HMI Design Guide
https://support.industry.siemens.com/cs/attachments/80142364/80142364_braumat_hmi_design_guide_en.pdf
https://support.industry.siemens.com/cs/attachments/80142364/templatestaticobjects.zip
Documentation - BRAUMAT Operator Manual
https://support.industry.siemens.com/cs/attachments/80142364/80142364_braumat_operator_manual_en.pdf
https://support.industry.siemens.com/cs/attachments/80142364/80142364_braumat_v7_Operator_Manual_en.pdf
Documentation and code - BRAUMAT "PULSES" function
https://support.industry.siemens.com/cs/attachments/80142364/80142364_braumat_function_pulses_en.pdf
https://support.industry.siemens.com/cs/attachments/80142364/pulses.zip
Documentation and code - BRAUMAT "TankCooling" function
https://support.industry.siemens.com/cs/attachments/80142364/80142364_braumat_function_tankcool_en.pdf
https://support.industry.siemens.com/cs/attachments/80142364/tankcool.zip
Documentation and code - BRAUMAT "Seat Lifting Block (SLB)" function
https://support.industry.siemens.com/cs/attachments/80142364/80142364_braumat_slb_de.pdf
https://support.industry.siemens.com/cs/attachments/80142364/slbliefer.zip

varella · Member junior Joined: 25 Oct 2016 Posts: 86

BRAUMAT V5.3 SP3
https://ulozto.net/file/pRZtecj7bTiP/braumat-v5-3-sp3-iso
[URL=https://www.file-upload.net/download-13793006/BRAUMATV5.3SP3.iso.html]BRAUMATV5.3SP3.iso[/URL]
Braumat/Sistar v 5.3 SP1 SP3
https://mega.co.nz/#F !eQEBFBJR!XwJgeI3gHb7jWA7MIAHSkw
https://ulozto.net/tam/_YFEKoR2fX73I
[URL=https://www.file-upload.net/download-13793032/BRAUMATV5.3SP3.iso.html]BRAUMATV5.3SP3.iso[/URL]
[URL=https://www.file-upload.net/download-13793031/BRAUMATV5.3SP1.iso.html]BRAUMATV5.3SP1.iso[/URL]

Braumat V6.2 SP2
https://ulozto.net/file/shMn17Tj0PHt/braumat-6sp2-iso
[URL=https://www.file-upload.net/download-13793045/braumat_6sp2.iso.html]braumat_6sp2.iso[/URL]

Braumat V7.1
https://mega.nz/#F !BPpUVYpI!8dZ5WPRhmK6UhT1QnXSn2Q
https://ulozto.net/file/kapw0hnvskHG/braumatv7sp1-iso
[URL=https://www.file-upload.net/download-13793038/BRAUMATV7SP1.iso.html]BRAUMATV7SP1.iso[/URL]

BRAUMAT / SISTAR V8.0 TRIAL Download
https://support.industry.siemens.com/cs/document/109773148/braumat-sistar-v8-0-trial-download
Additional Software for S7 PLC engineering
For the engineering of the S7 PLC the Software STEP 7 is required. Which variant of STEP 7 you need depends on the desired CPU type.
https://support.industry.siemens.com/cs/document/109761045/simatic-step-7-and-wincc-v15-1-trial-download
https://support.industry.siemens.com/cs/document/109761679/step-7-v5-6-sp1-step-7-professional-2017-sr1-trial-download

Download SIMATIC BRAUMAT & SISTAR V8.0
BRAUMAT V8.0
https://support.industry.siemens.com/cs/attachments/109773148/BRAUMAT_V80.exe
SISTAR V8.0
https://support.industry.siemens.com/cs/attachments/109773148/SISTAR_V80.exe
https://support.industry.siemens.com/cs/attachments/109773153/BraumatSistar_Manual_b_en-US.pdf
https://ulozto.net/file/0pYftceoCSdU/braumat-v80-exe
https://ulozto.net/file/UCPTBhhSWZ00/sistar-v80-exe
[URL=https://www.file-upload.net/download-13792964/BRAUMAT_V80.exe.html]BRAUMAT_V80.exe[/URL]
[URL=https://www.file-upload.net/download-13792972/SISTAR_V80.exe.html]SISTAR_V80.exe[/URL]

https://support.industry.siemens.com/cs/attachments/109773152/SQL_DBHostb_en-US.pdf

SIMATIC BRAUMAT / SISTAR V7.5 TRIAL Download
https://support.industry.siemens.com/cs/document/109761435/simatic-braumat-sistar-v7-5-trial-download

https://support.industry.siemens.com/cs/attachments/109761435/BRAUMAT_V75.exe
https://support.industry.siemens.com/cs/attachments/109761435/SISTAR_V75.exe
https://ulozto.net/file/L0DmhNUKEPNA/braumat-v75-exe
[URL=https://www.file-upload.net/download-13793061/BRAUMAT_V75.exe.html]BRAUMAT_V75.exe[/URL]
[URL=https://www.file-upload.net/download-13793064/SISTAR_V75.exe.html]SISTAR_V75.exe[/URL]
https://ulozto.net/file/WqrLjiggEqcO/sistar-v75-exe

Update 1 for BRAUMAT & SISTAR V7.5:
https://support.industry.siemens.com/cs/attachments/109764843/BM_V07050001_01020001.zip
[URL=https://www.file-upload.net/download-13793068/BM_V07050001_01020001.zip.html]BM_V07050001_01020001.zip[/URL]
https://ulozto.net/file/yPJE0WKi6RT6/bm-v07050001-01020001-zip

Use http://winimage.com/ for write image IMA to floppy
Use License_Inst_Unist.exe for Install full or trial keys to hard disk
Braumat_IOS01.IMA and IOS01.IMA with full keys
Some image file have only trial keys
https://ulozto.net/file/dW2526cUa7qk/sim-ekb-2006-11-14a-rar

ox2v · Junior Joined: 15 Sep 2018 Posts: 17

How do you configure a connection between S7-1500 and S7-400 controllers in BRAUMAT/SISTAR?
https://support.industry.siemens.com/cs/document/109778362/
Configuration steps for establishing the communication connection between S7-1500 and S7-400.

The two controllers are in two different projects.
STEP 7 (TIA Portal)
STEP 7 V5 (SIMATIC Manager)

An unspecified connection is used for communication.

Configuration in the TIA Portal

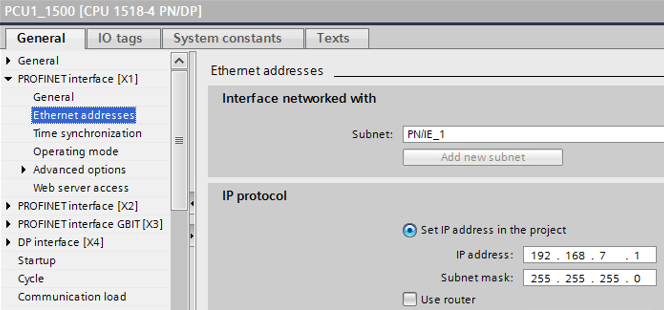

Network settings
Assign your IP address and subnet mask for the connection from S7-1500 to S7-400.

BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

Fig. 01

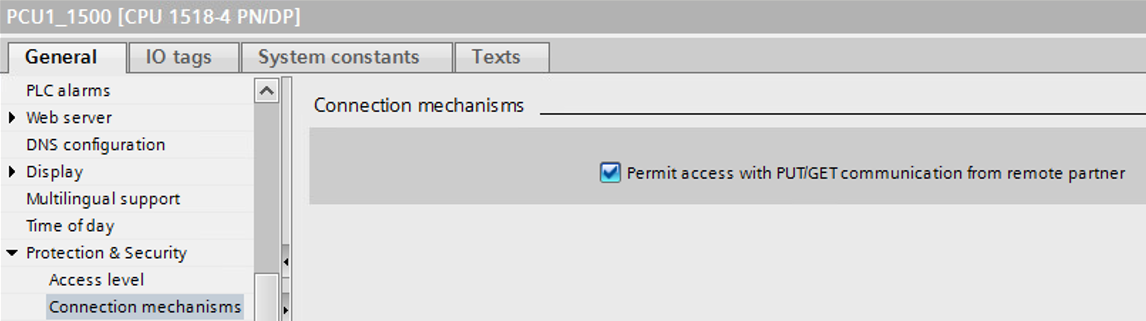

Enable the PUT/GET communication in the security settings of the controller.
BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

Fig. 02

Establish connection

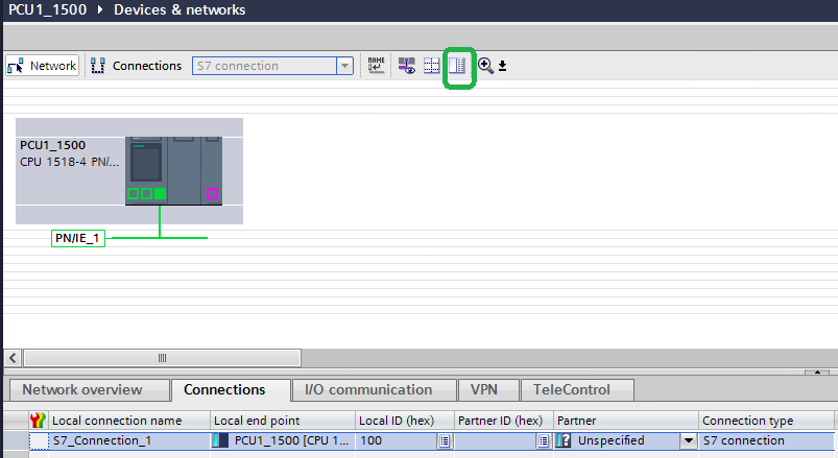

Switch to the TIA Portal Network view and arrange your working area.
BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

Fig. 03

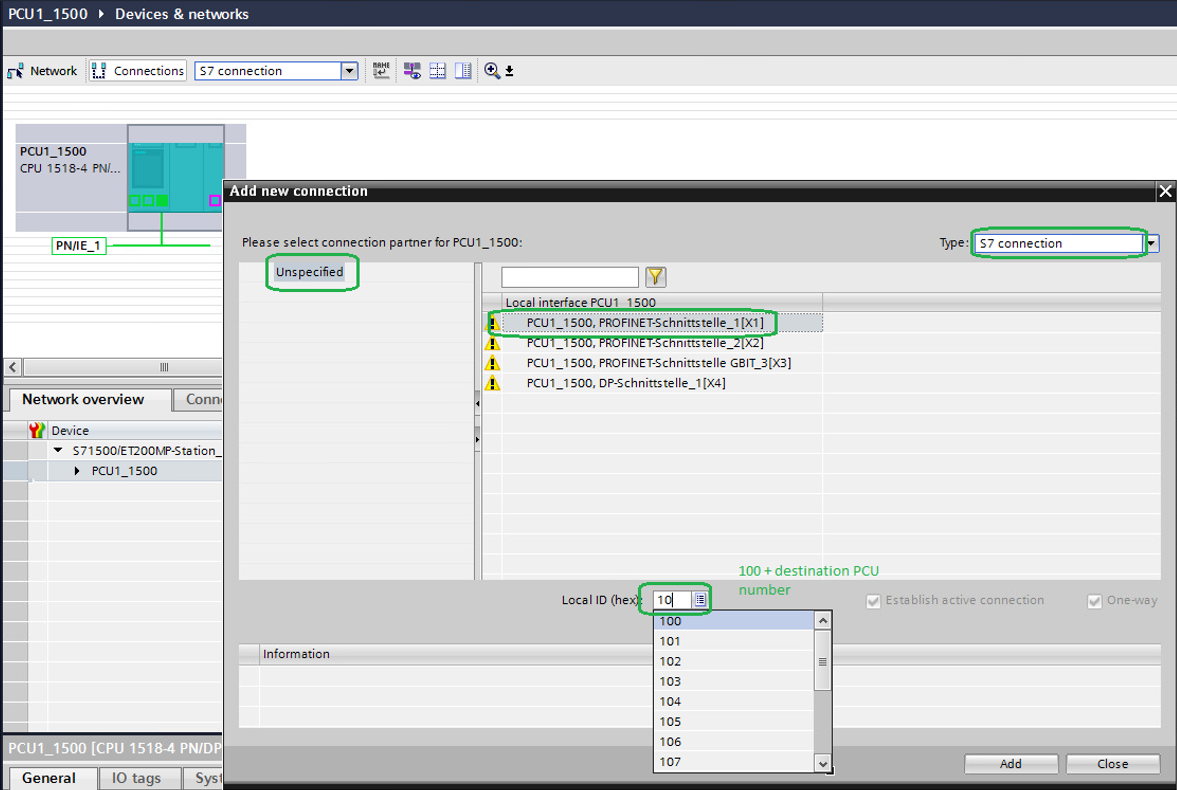

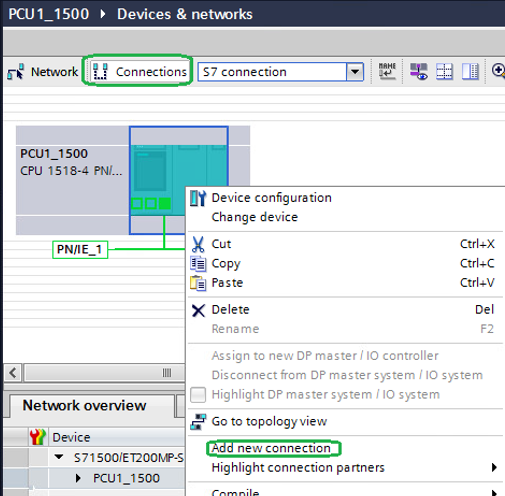

Select your controller and right-click it. Select "Add new connection" from the pop-up menu.
BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

Fig. 04

Select the interface of your S7-1500 controller.
Add an unspecified S7 connection.
Select 100 hex+<Value> hex of your connection partner (PCU) as local ID.
Example: Target PCU16 corresponds to 110 hex.
BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

Fig. 05

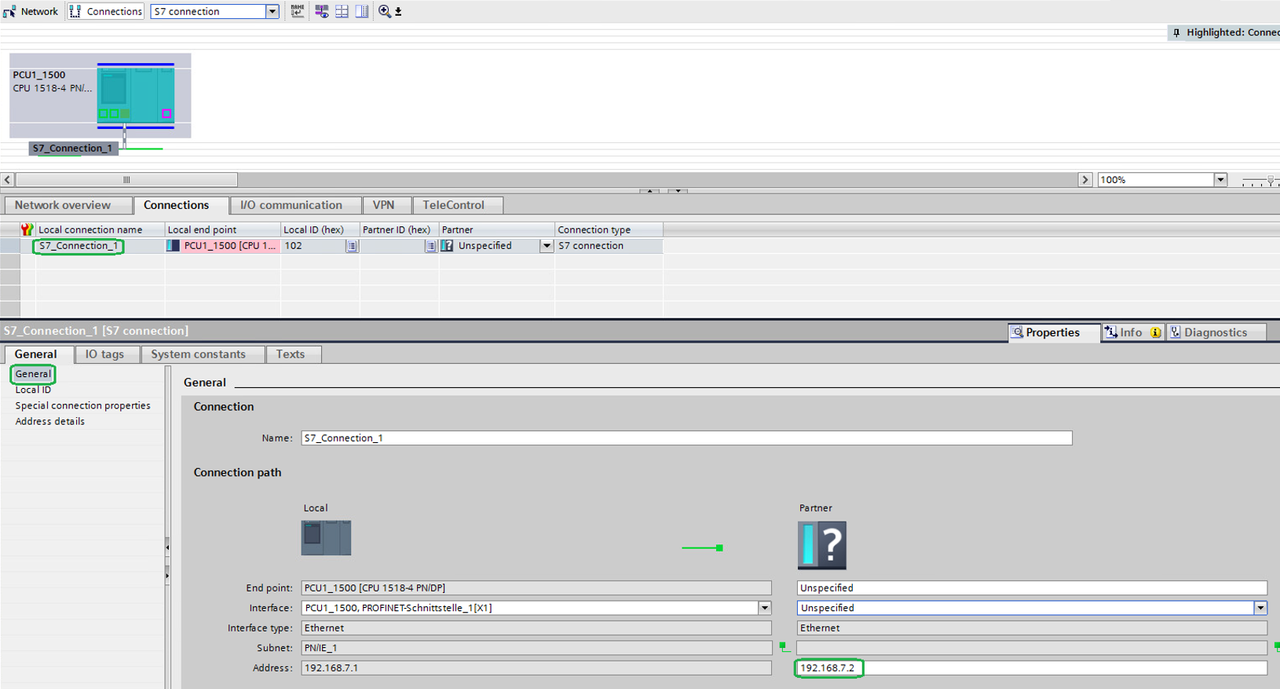

Select the general settings of the new connection and assign the IP address of your connection partner.
BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

Fig. 06

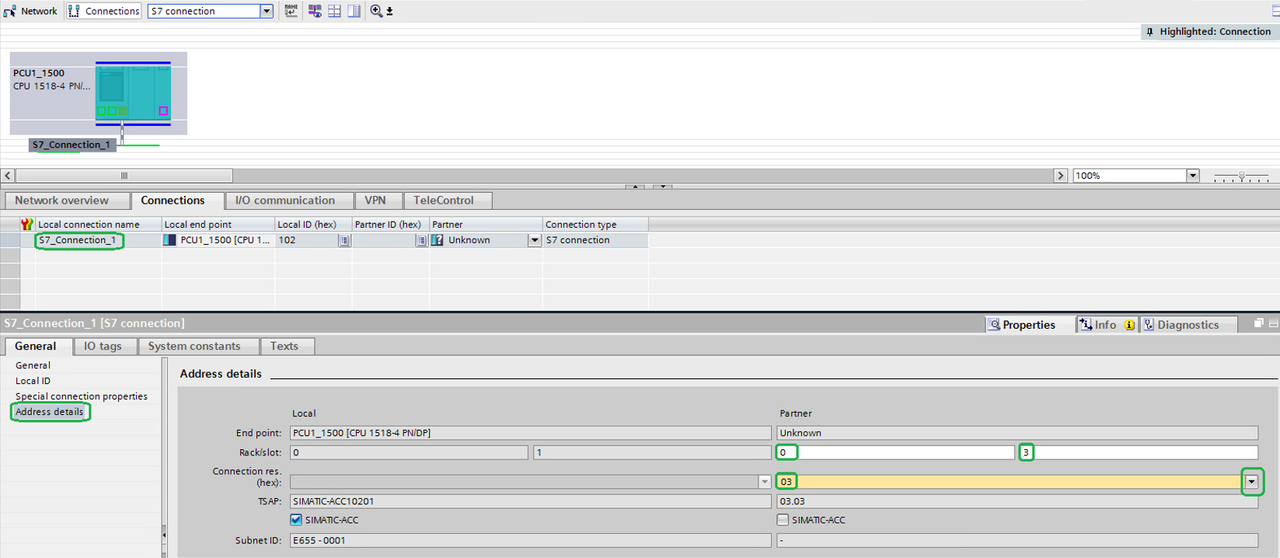

Select the address details and assign the rack and slot numbers of the CPU of your connection partner.
For the unilateral S7 connection to an unspecified partner you choose "03" (hex) in the drop-down list of the connection resource.
BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

Fig. 07

Compile and download
Compile and download the changes to your S7-1500 controller.

Configuration in the SIMATIC Manager
Create new connection in NetPro

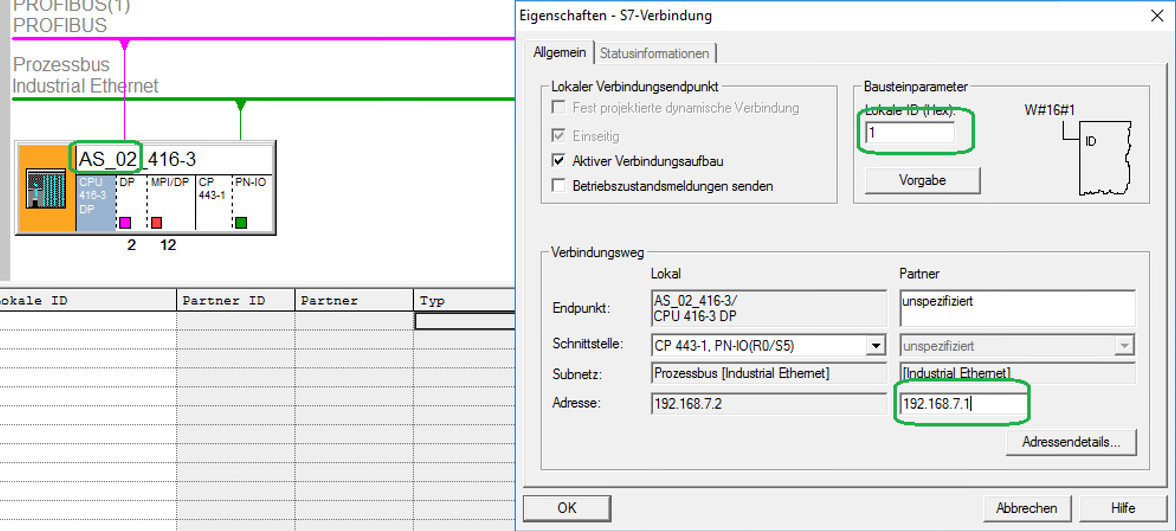

Select your controller and create a new connection. Add an unspecified S7 connection.
Select the hex value of your target controller (PCU) as local ID.
Assign the IP address of your target controller and always enable "Active connection establishment" if your target controller is an S7-1500.
BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

Fig. 08

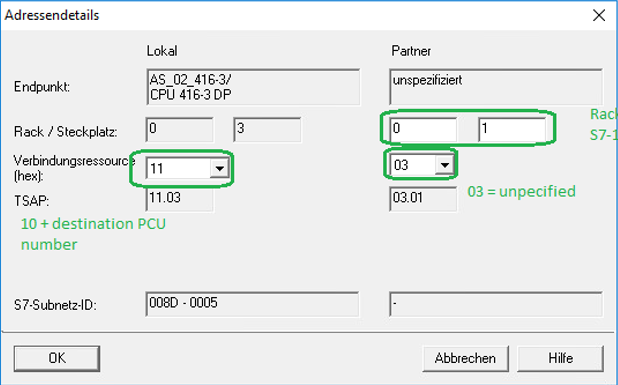

Select "Address details".
Assign the rack and slot numbers of your partner controller.
Assign your local ID.
Assign the partner ID "03" for your S7-1500 partner controller. (The value is always "03" for an S7-1500.)
Select 10 hex+<value> hex of your target controller (PCU) as local ID.
Example: Target PCU16 corresponds to 20 hex.
BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

Fig. 09

Compile and download
Compile your project and download everything to the controller. Restart your controller.

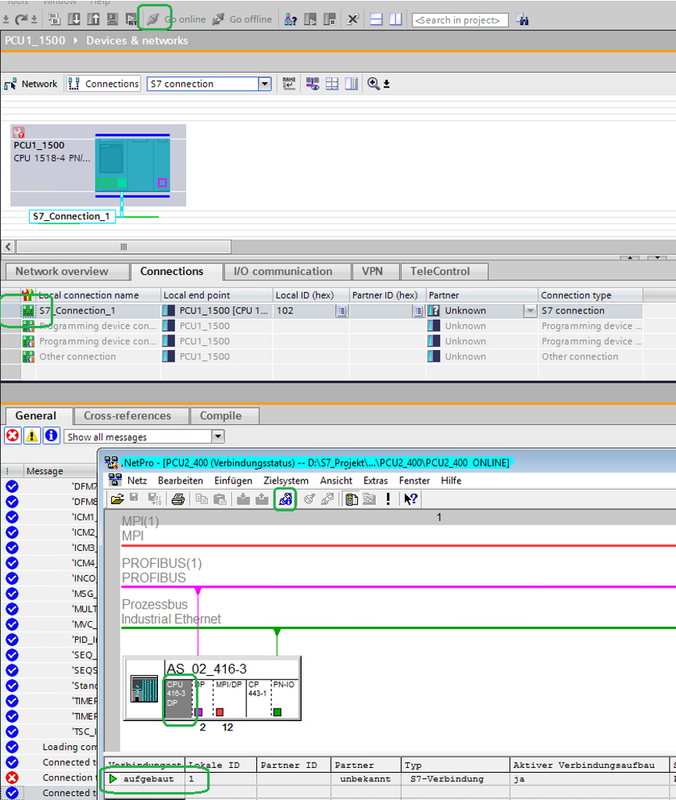

Online connection
Enable "Go online" in the devices and Network view of TIA Portal.
Check the connection you created. Established connections are shown green in the Online view.
Enable "Go online" in NetPro. Select your CPU and check the connection status.
BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

Fig. 10

Configure connection in BRAUMAT/SISTAR "XC_PCU"

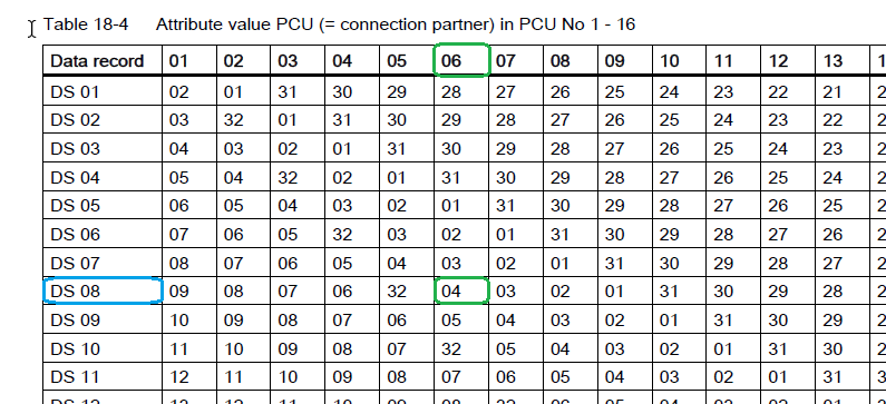

Select the data record for the XC_PCU according to the partner PCU using the connection table of the manual.
BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

Fig. 11
Refer also to Entry ID: 109773153 or at the following link: "SIMATIC BRAUMAT/SISTAR > Cross coupling AS - AS > Parameterization of the connections > PCU allocation to data set".

Example
The connection between PCU 6 and PCU 4 uses the data record 8.

Configuration for both PCUs in the same data record.
The partner PCU number, assign connection ID (local) and enable the connection.
BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

Fig. 12

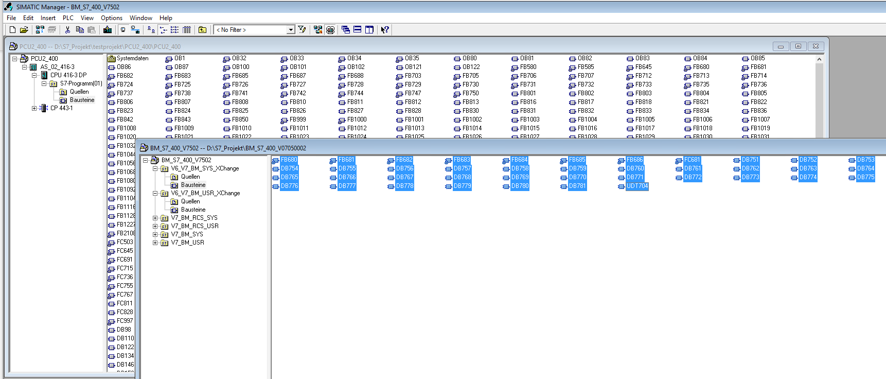

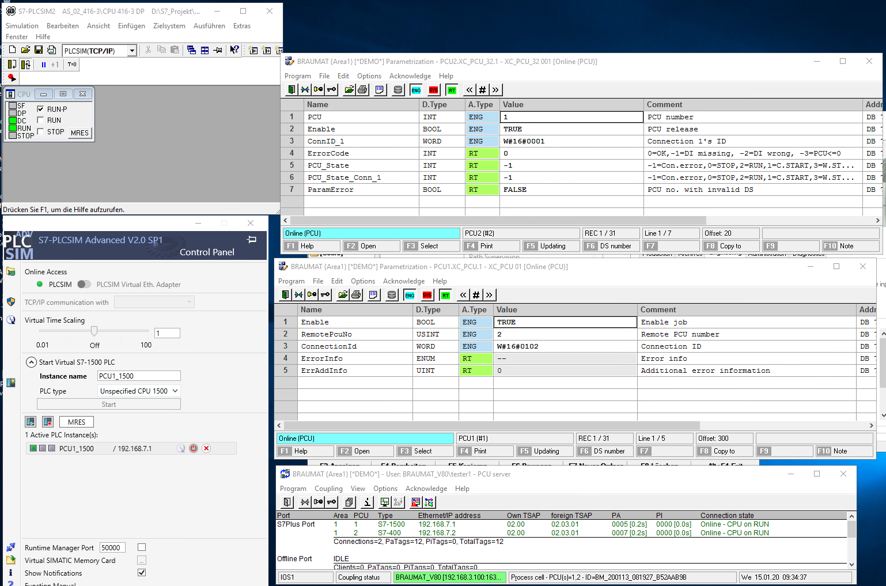

Upgrade S7-400 controllers to STEP 7 V7.5 Upd2
All BRAUMAT S7-400 versions before V7.5 Upd 2 must use the cross-coupling blocks from V7.5 Upd 2. Without an update connection errors (-1) occur in the PCU_Status of the S7-1500 PCU.
The blocks are released with BRAUMAT V6.x and V7.x.

Copy the blocks from the folder "V7_V7_BM_SYS_XChange" into your S7-400 offline project folder and into your S7-400 controller.
BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

Fig. 13

After the update the connections work without errors.
BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

Fig. 14

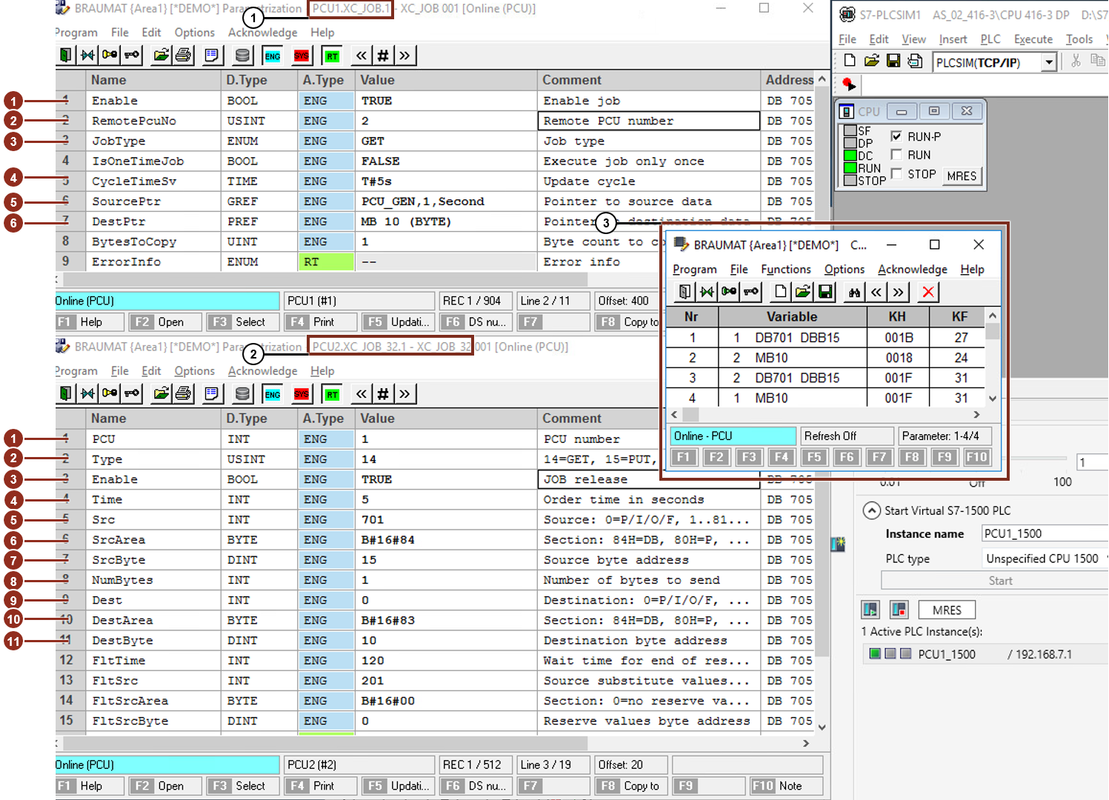

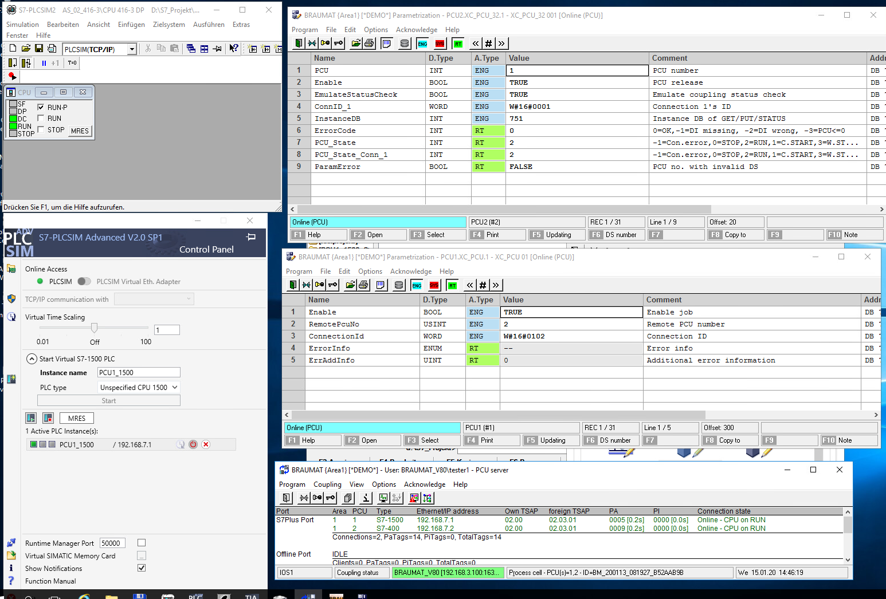

Configure connection tests

To test the connection, configure a GET access in XC_JOB of both controllers.
Read the time (seconds) from the PCU_GEN block of your partner PLC into a local marker byte.
The following figure shows you the necessary steps. (Positions are marked black and steps to be executed are marked red.)
BRAUMAT with STEP 7 - Additional functions for BRAUMAT BRAUMAT

Fig. 15

Configure XC_JOB in the S7-1500 (Position 1)

Enable the "TRUE" job.
Select "RemotePcuNo" 2 for PCU 2.
Select the "JobType" "GET".
Assign 5s as the update cycle for "CycleTimeSv".
For "SourcePtr" assign "DB701 DBB15" ("PCU_GEN,1,Second").
Assign "DestPtr" marker byte 10.
Configure XC_JOB_32 in the S7-400 (Position 2)

Select "remote PCU number" 1.
Assign "Type" 14 for "GET access".
Enable the job with "TRUE" to release it.
Assign 5s as "Job time (update cycle)" 5s.
For source "Src" assign 701 for DB701.
Assign 84H as "SrcArea" to access the DB.
Assign 15 as "SrcByte" as start address in DB701.
Assign 1 as "NumBytes" to read a byte.
Assign 0 as "Dest" (no DB).
Assign 83H as "DestArea" to access the markers.
Assign 10 as "DestByte" for marker 10.
Check the status of the source and target bytes with the BRAUMAT/SISTAR function "Control" in the Diagnostics tab of the BRAUMAT/SISTAR main menu. (Position 3)
