 Posted: 06/07/2014 17:28 Post subject: Beckhoff BC9000 FB_SNTP Clock Synchronization |
 |
|
Hello everyone,
I'm doing a Building Automation with PLC Beckhoff BC9000.
Being the PLC free of hardware real-time clock, after the boot of PLC it is necessary a clock synchronization with the current time and date.

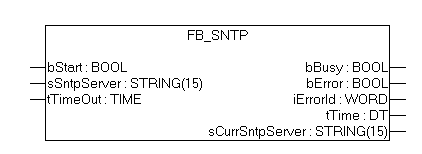

The Beckhoff documentation says to use the function block FB_SNTP that is able to synchronize the clock of the BC9000 with a time server on the Internet.
The function block FB_SNTP should be contained in the library TcIpUtilitiesBC.lb6 that however it does not conține this function block...
http://infosys.beckhoff.com/italiano.php?content=../content/1040/bc9000/html/bt_bc9000_sntp.htm&id=1923
I've looked for everywhere but I didn’t find the function block FB_SNTP.
Have some of You already faced this problem or know where to find the function block FB_SNTP?
Thanks a lot |
|
| Back to top |
|
 |
zeck
Member 2
Joined: 08 Mar 2014
Posts: 308
|
| Posted: 07/07/2014 21:13 Post subject: Re: Beckhoff BC9000 FB_SNTP Clock Synchronization |
|
|
| Actarus800 wrote: | Hello everyone,
I'm doing a Building Automation with PLC Beckhoff BC9000.
Being the PLC free of hardware real-time clock, after the boot of PLC it is necessary a clock synchronization with the current time and date.
The Beckhoff documentation says to use the function block FB_SNTP that is able to synchronize the clock of the BC9000 with a time server on the Internet.
The function block FB_SNTP should be contained in the library TcIpUtilitiesBC.lb6 that however it does not conține this function block...
http://infosys.beckhoff.com/italiano.php?content=../content/1040/bc9000/html/bt_bc9000_sntp.htm&id=1923
I've looked for everywhere but I didn’t find the function block FB_SNTP.
Have some of You already faced this problem or know where to find the function block FB_SNTP?
Doanload lib:
http://infosys.beckhoff.com/english.php?content=../content/1033/tcplclibhvac/html/tcplclibhvac_setlocaltime.htm&id=
Thanks a lot |
Take a look on how it is possible to synchronize the local system time to a reference time with the help of the SNTP protocol on
Beckhoff Information System > Embedded PC > Operatingsystem > CE > SNTP: Simple Network Time Protocol
Download link:
http://infosys.beckhoff.com/content/1033/tcplclibhvac/Download/TcHVAC.zip |
|
| Back to top |
|
|
Actarus800
Junior
Joined: 26 May 2012
Posts: 2
|
| Posted: 07/07/2014 22:52 Post subject: |
|
|
This is valid for PC based bus terminal controller (e.g. with OS Windows CE).
The BC9000 is a BC based bus terminal controller... |
|
| Back to top |
|
|
ATRossyn
Junior
Joined: 24 Jun 2022
Posts: 1
|
| Posted: 18/09/2022 18:02 Post subject: |
|
|
| Actarus800 wrote: | This is valid for PC based bus terminal controller (e.g. with OS Windows CE).
The BC9000 is a BC based bus terminal controller... |
https://infosys.beckhoff.com/english.php?content=../content/1033/bc9000/4351351435.html&id=
[URL=https://veryfiles.com/pw2be50wv02y]tciputilitiesbc.zip - 1 KB[/URL]
ex
[URL=https://veryfiles.com/be2hmhxa5rah]sntp.zip - 2 KB[/URL] |
|
