tpd · Member junior Joined: 18 May 2017 Posts: 97

Hello,
I have tried to find a pinout drawing for D-SUB DB 15 female connector located in encoder's cover/cap everywhere, unsuccessfully.
SEW and Baumer are hiding it, only is available pinout of terminal which is also located in the same cover/cap.

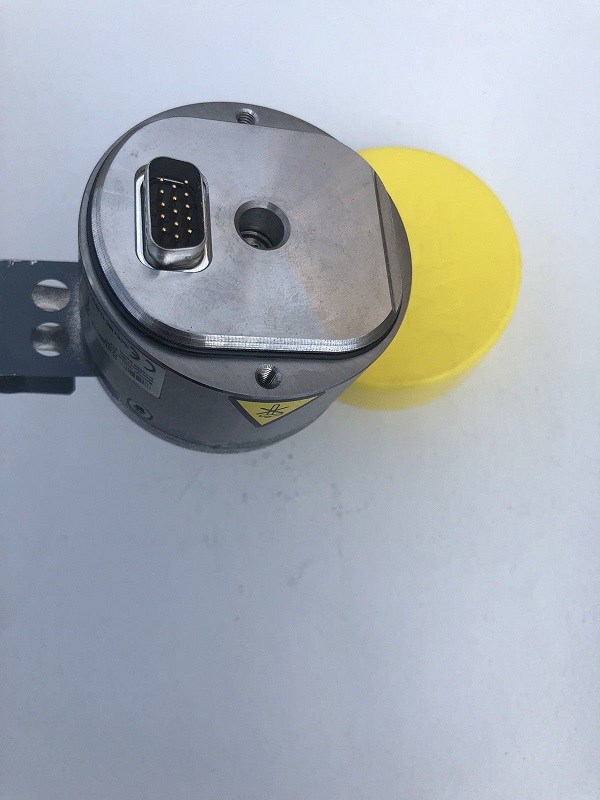

Here are the pictures and drawings, if anybody can help with this, please do:
https://ibb.co/Bg08PDT
[url=https://ibb.co/Bg08PDT] BAUMER Absolute Encoder AMG 73 Pinout Needed BAUMER Absolute Encoder AMG 73 Pinout Needed

[/url]
https://ibb.co/vV2rSy8
[url=https://imgbb.com/] BAUMER Absolute Encoder AMG 73 Pinout Needed BAUMER Absolute Encoder AMG 73 Pinout Needed

[/url]
https://ibb.co/M8Jp185
[url=https://imgbb.com/] BAUMER Absolute Encoder AMG 73 Pinout Needed BAUMER Absolute Encoder AMG 73 Pinout Needed

[/url]
https://ibb.co/0n3t3zq
[url=https://ibb.co/0n3t3zq] BAUMER Absolute Encoder AMG 73 Pinout Needed BAUMER Absolute Encoder AMG 73 Pinout Needed

[/url]
Thanks

odz437 · Junior Joined: 06 Jul 2019 Posts: 4

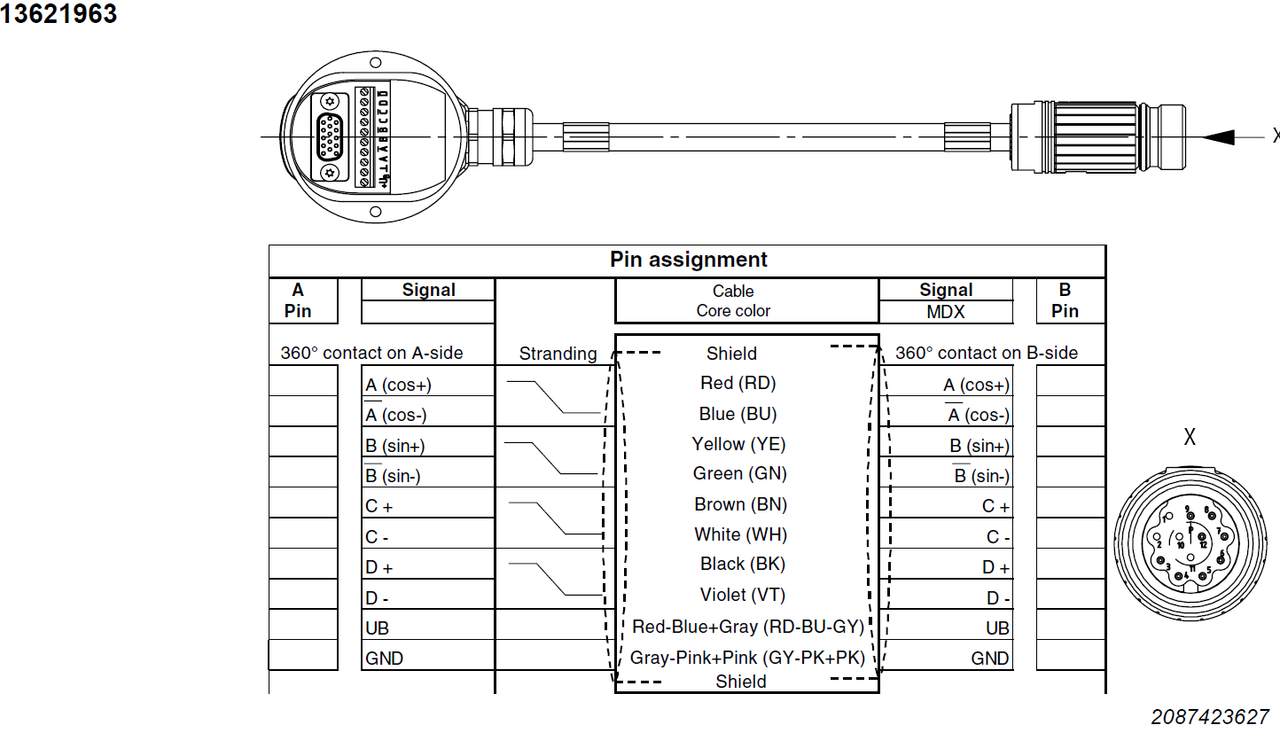

https://download.sew-eurodrive.com/download/pdf/20242549.pdf
BAUMER Absolute Encoder AMG 73 Pinout Needed BAUMER Absolute Encoder AMG 73 Pinout Needed

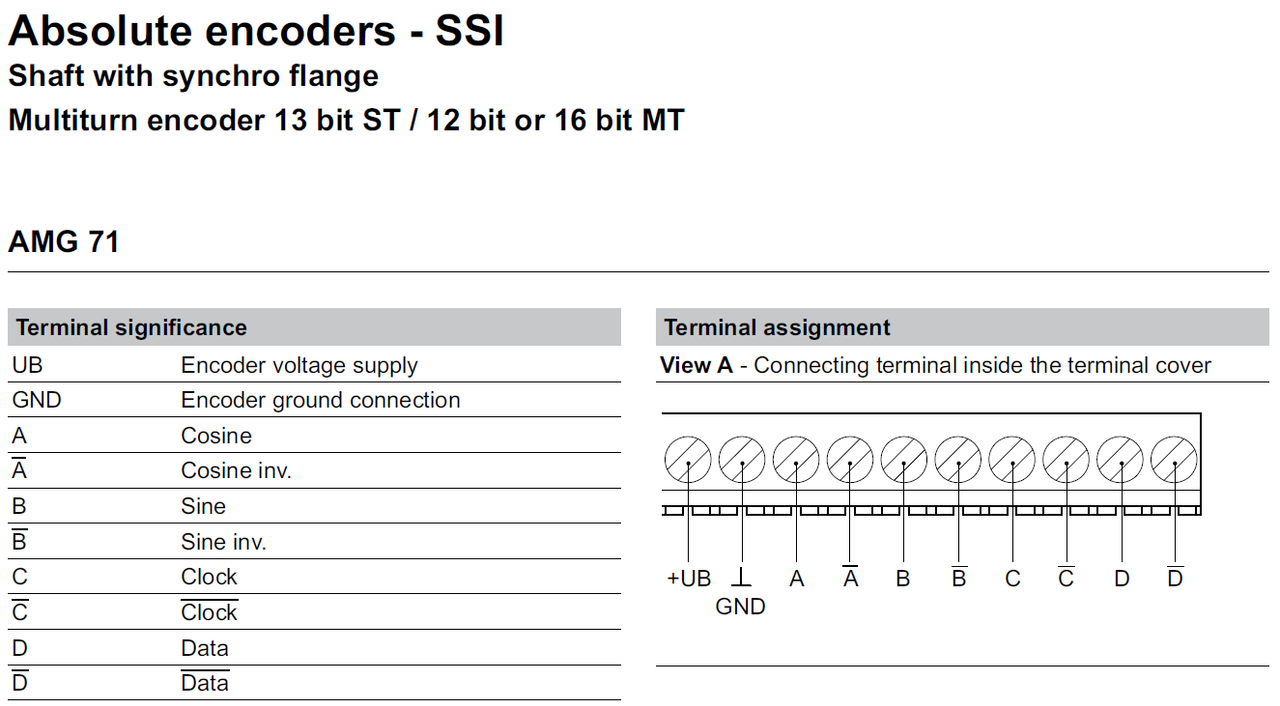

should be as in
BAUMER Absolute Encoder AMG 73 Pinout Needed BAUMER Absolute Encoder AMG 73 Pinout Needed

Eventually with a Multimeter try to find correspondence between klemms and pins

tpd · Member junior Joined: 18 May 2017 Posts: 97

Thanks, but it is not what I am asking for - I need pinout drawing of D-SUB 15 female connector in encoder's cover. In all the drawings you posted is only present a pinout of straight terminal inside the cover - what I need is connection between terminal and female connector in encoder's cover (please pay attention on red arrows in my first drawing). SEW is hiding this information to force you to buy their cover which costs 80 $. I ordered it a week ago, soon I should get it.
