Backup battery


Post new topic   Reply to topic    plc.myforum.ro Forum Index -> Simatic Automation Systems
View previous topic :: View next topic
Author Message
Adnan882
Junior
Junior


Joined: 21 Mar 2018
Posts: 15
PostPosted: 30/11/2018 16:06    Post subject: Backup battery Reply with quote
Hello

What are the steps to change the backup battery of the CPU 414H ??

Thanks
Back to top
View user's profile Send private message
Barthalla
Junior
Junior


Joined: 18 Oct 2018
Posts: 3
Location: Texas
PostPosted: 30/11/2018 17:27    Post subject: Re: Backup battery Reply with quote
Adnan882 wrote:
Hello

What are the steps to change the backup battery of the CPU 414H ??

Thanks

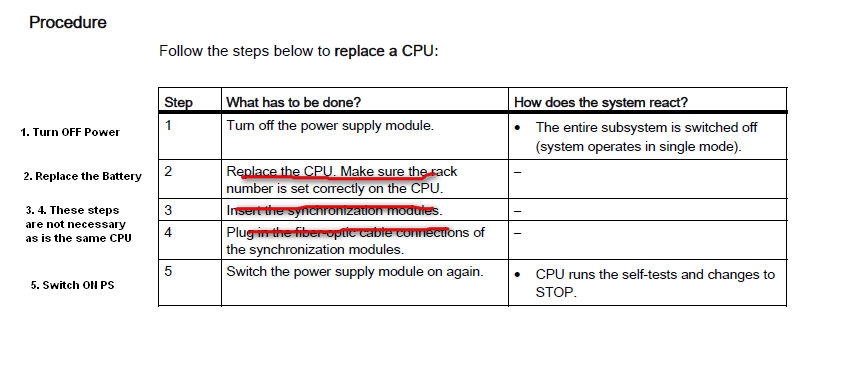

The procedure you want can be found in section"16.2.1 Failure and replacement of a CPU" of this manual pretending you replace a CPU ..

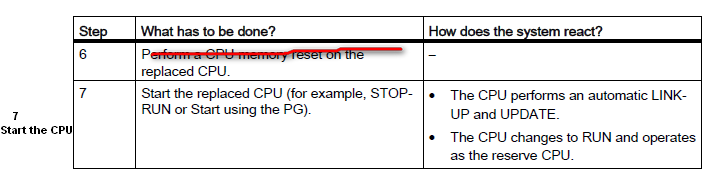

check pictures
Make sure you short out the positive to negative of the batteries for 2 to 3 seconds before you install them just for forming
https://support.industry.siemens.com/cs/attachments/60458386/S7_400_h_en_en-US.pdf
Backup battery Re: Backup battery
Backup battery Re: Backup battery
