Diagnostic block for AS-i master modules with visualization via HMI or web browser
https://support.industry.siemens.com/cs/document/50897766/diagnostic-block-for-as-i-master-modules-with-visualization-via-hmi-or-web-browser
For use of the ET 200SP modules CM AS-i Master ST and F-CM AS-i Safety we provide a separate diagnosis package. 109479103

The presented diagnostic block for AS-i master modules supports the following and other AS-i masters from the SIMATIC product range:
DP/AS-i Link 20E
DP/AS-i LINK Advanced
IE/AS-i LINK PN IO
CP 343-2P, CP 343-2

AS-Interface slaves are connected with a SIMATIC controller via gateways or communication modules. An individual evaluation of the diagnostic data of the AS-i masters and slaves in the STEP 7 user program supports the plant operator searching the failure in case of service, so that the failure-free operation could be re-established fast.
The requirement in this application is to show how with the aid of a universal diagnostic block from a library all for S7-300/400 and S7-1500 actual available AS-i master systems can be common diagnosed and visualized.

To simplify the AS-i diagnostic for the user, the present library contains a number of blocks to be able to conveniently evaluate and visualize the diagnostic data:
in the user program: The read AS-i diagnostic data is ready for individual further processing in a data block.
on HMI panels: The library includes blocks that serve as interface between HMI panel and CPU.
via web browser: SIMATIC CPUs with PROFINET interface provide the opportunity to access CPU variables with the help of individually designed web pages provided by the system. The library includes blocks that serve as interface between user-defined web pages and CPU.
The diagnostic blocks were realized for the S7-300/400 and S7-1500 CPU.

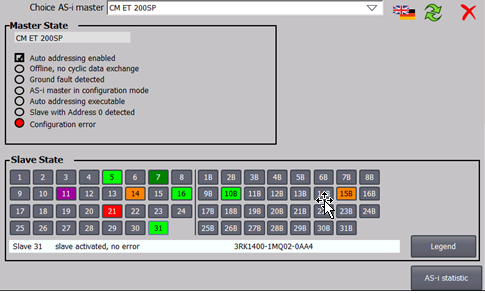

WinCC flexible visualization
The diagnostics user interface is realized using the depending AS-Interface visualization block:
AS-Interface Diagnostic Block and Visualization via HMI Diagnostic block AS-i master modules with vis via HMI

AS-Interface Diagnostic Block and Visualization via HMI Diagnostic block AS-i master modules with vis via HMI

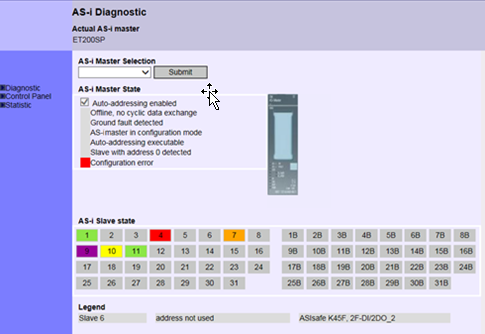

Web visualization
The web user interface is realized using the depending AS-Interface visualization block and javascript:
AS-Interface Diagnostic Block and Visualization via HMI Diagnostic block AS-i master modules with vis via HMI

Downloads
S7-1500 in TIA Portal V13 SP 1
https://support.industry.siemens.com/cs/attachments/50897766/50897766_ASI_DIAG_LIB_DOKU_TIAV13_V10_EN.pdf
https://support.industry.siemens.com/cs/attachments/50897766/50897766_ASI_DIAG_S7_1500_CODE_TIAV13.zip
S7-300 in TIA Portal V13 SP 1
https://support.industry.siemens.com/cs/attachments/50897766/50897766_ASI_DIAG_S7_x00_CODE_TIAV13.zip
https://support.industry.siemens.com/cs/attachments/50897766/50897766_ASI_DIAG_LIB_DOKU_TIAV13_V10_EN.pdf
S7-300/400 in Step 7 Classic V5.5 SP3)
https://support.industry.siemens.com/cs/attachments/50897766/50897766_asi_diag_classic_code_s7300.zip
https://support.industry.siemens.com/cs/attachments/50897766/50897766_s7_300_asi_diag_lib_doku_classic_v30_en.pdf
AS-Interface - Introduction and Basic Information
https://support.industry.siemens.com/cs/attachments/1171856/SYH_asi-grundlagen_76_201805231008141616.pdf
https://support.industry.siemens.com/cs/attachments/5581657/CP_343-2_Manual_2008-08_X-2010-08_en.pdf

gaty · Member Joined: 01 Mar 2017 Posts: 188

Universal Diagnostic Block and HMI Template for AS-Interface Safety Monitor
https://support.industry.siemens.com/cs/document/51339169/universal-diagnostic-block-and-hmi-template-for-as-interface-safety-monitor
The Actuator Sensor Interface (AS interface, AS-i) is a networking solution for binary sensors and actuators using a field bus of the lowest automation system layer. To ensure their fail-safe communication SIEMENS offers for any bus system the appropriate safety technology which is PROFIsafe for PROFIBUS/PROFINET and ASIsafe for AS-Interface applications.
An AS-i safety monitor and a safe AS-i slave help configure quickly and easily small safety islands (ASIsafe Solution local) within an AS-i system and assign them safety-relevant functions. Neither fail-safe PLC nor specific AS-i masters are required for such purpose.
Diagnostic of the AS-i safety monitor though, requires professional knowledge in application and functionality.
The purpose of this application is to show the user how the AS-i safety monitor can be diagnosed and visualized very easily with the help of an universal diagnostic block even without having such specialist knowledge.

Together with AS-i Slaves the AS-i safety monitor provides the basis for a small safety island. The safety monitor checks the safe inputs of the safe AS-i slaves and its configurable shutdown logic provides for safe shutdown.
The ASIMON2D AS-Interface block offers a simple way to diagnose and - if required - visualize on an HMI panel - the small safety island.
The ASIMON AS-Interface diagnostic block (FB102) provides the statuses of its enable circuits, the operating mode as well as the blocks' statuses of the shutdown logic and stores the diagnostic data in the instance data block.
To display the diagnostic data in a WinCC flexible environment, the ASI HMI DB(DB69) can be used.
It supports all current safety monitors of the SIMATIC product range:
Advanced safety monitor from V2.x up
Basic safety monitor from V2.x up
Safety monitor V1.x

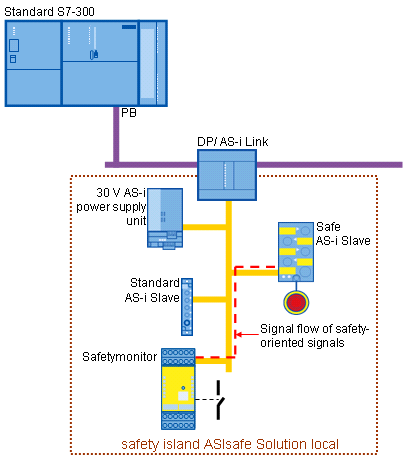

Hardware configuration in the example project
AS-Interface Diagnostic Block and Visualization via HMI Diagnostic block AS-i master modules with vis via HMI

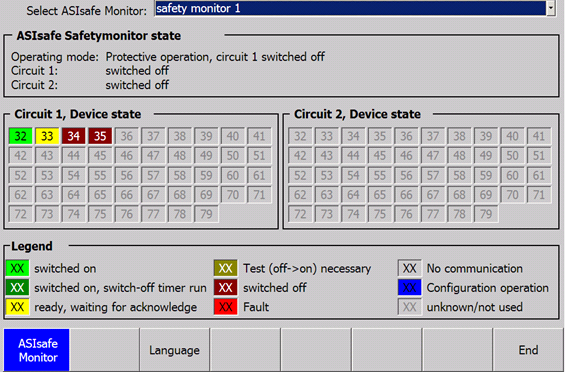

WinCC flexible visualization
The diagnostic user interface runs with ASI HMI DB69:
AS-Interface Diagnostic Block and Visualization via HMI Diagnostic block AS-i master modules with vis via HMI

STEP 7 project with integrated WinCC flexible visualization
https://support.industry.siemens.com/cs/attachments/51339169/51339169_ASI_SECMON_DOKU_V20_en.pdf
https://support.industry.siemens.com/cs/attachments/51339169/51339169_ASI_SECMON_CODE_V10.zip

gaty · Member Joined: 01 Mar 2017 Posts: 188

Convenient Command Interface for central and distributed AS-I master for AS-Interface
https://support.industry.siemens.com/cs/document/51678777/convenient-command-interface-for-central-and-distributed-as-i-master-for-as-interface
Some AS-i master have a command interface to exchange the parameterization and information data to a controller. In this entry you get a library for STEP 7 V5.5 to simplify the communication over the command interface.
AS-Interface is an open, vendor-independent field bus system for easy networking of binary sensors and actuators at the lowest process level. The most important components for setting up an AS-i line are different standard slaves as well as safe slaves and an AS-i master. The AS-i master establishes the connection to a higher-level programmable controller and two types are offered: Modules for direct connection to S7 CPUs (AS-i CPs) or on a distributed basis as a gateway to higher-level bus systems. Parameterization and information data of a controller is exchanged with some AS-i master via data records and a command interface.
The requirement of this application is to provide the user with a convenient command interface.

The ASI_CTRL AS-Interface library simplifies communication with central or distributed AS-i masters with command interface via the user program. This block handles the command protocol independently and also enables the user to parameterize SIMATIC AS-i masters and to read out information data.
It supports both centrally inserted AS-i masters and distributed AS-i masters with a command interface.
In detail, these are the AS-i masters of the following type:
CP 343−2 / CP 343−2 P
DP/AS-i Link 20E
DP/AS-i Link Advanced
DP/AS-i F-Link
CM AS-i Master ST for ET 200SP

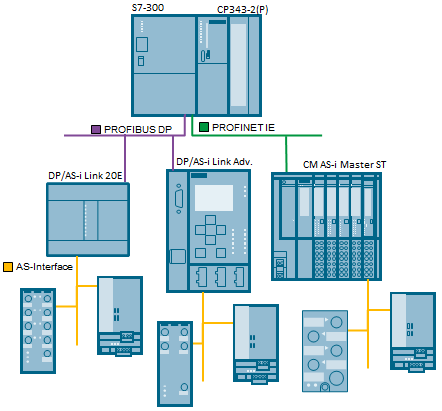

Possible hardware configuration
AS-Interface Diagnostic Block and Visualization via HMI Diagnostic block AS-i master modules with vis via HMI

Download
https://support.industry.siemens.com/cs/attachments/51678777/51678777_ASI_COM_INTERFACE_DOKU_V11_en.pdf
https://support.industry.siemens.com/cs/attachments/51678777/51678777_asi_com_interface_code_v10.zip
