 Posted: 13/08/2021 14:58 Post subject: Application for AC Multipoint-Charging systems with SIMATIC |
 |
|
Application for AC Multipoint-Charging systems with SIMATIC ECC (IEC 61851)
https://support.industry.siemens.com/cs/document/109782352/
This article consists the eCar Charging application with the module "TM ECC 2x PWM 12V" and the scalable STEP 7 (TIA Portal) project.
Description
The STEP 7 (TIA Portal) application shows you how to realize a multi-chargepoint solution based on a PLC and the technology module TM ECC 2xPWM 12V. The STEP 7 (TIA Portal) project can scale the number of chargepoints up to a customers need. The current parameters showing a setup for 4 Type 2 chargepoints for E-Cars (IEC 60309).

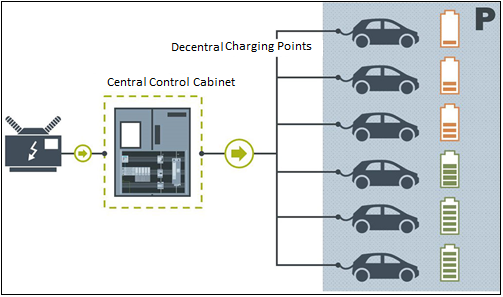

The follow picture shows you the example of Multipoint-Charging systems.
Example project
https://support.industry.siemens.com/cs/attachments/109782352/109782352_ECC_Example_V3_8_1.zip
The example project was created with STEP 7 (TIA Portal) V16 Upd 2.
https://anonfiles.com/L2m4O3B7u7/109782352_ECC_Example_V3_8_1_zip
https://ulozto.net/file/gq4M0KY26Y8b/109782352-ecc-example-v3-8-1-zip |
|
