Baba khan
Junior
Joined: 10 Jun 2020
Posts: 16
|
 Posted: 20/08/2024 12:16 Post subject: Analog input/out put redundancy |
 |
|
Hi every body
I have two analog output module(series 300) for redundant AO signals(ET200 M).
I want to know how I can achieve redundancy?
Thanks
Last edited by Baba khan on 21/08/2024 11:37; edited 1 time in total |
|
| Back to top |
|
 |
Ahmatt
Junior
Joined: 04 Sep 2018
Posts: 11
Location: Almatty
|
| Posted: 20/08/2024 20:04 Post subject: Re: Analog input/out put redundancy |
|
|
| Baba khan wrote: | Hi every body
I have two analog output module for redundant AO signals.
I want to know how I can achieve redundancy?
Thanks |
https://support.industry.siemens.com/cs/document/109817312/setting-up-io-redundancy-with-the-et-200sp-ha-in-step-7 |
|
| Back to top |
|
|
Ahmatt
Junior
Joined: 04 Sep 2018
Posts: 11
Location: Almatty
|
| Posted: 21/08/2024 18:20 Post subject: Re: Analog input/out put redundancy |
|
|
| Baba khan wrote: | Hi every body
I have two analog output module(series 300) for redundant AO signals(ET200 M).
I want to know how I can achieve redundancy?
Thanks |

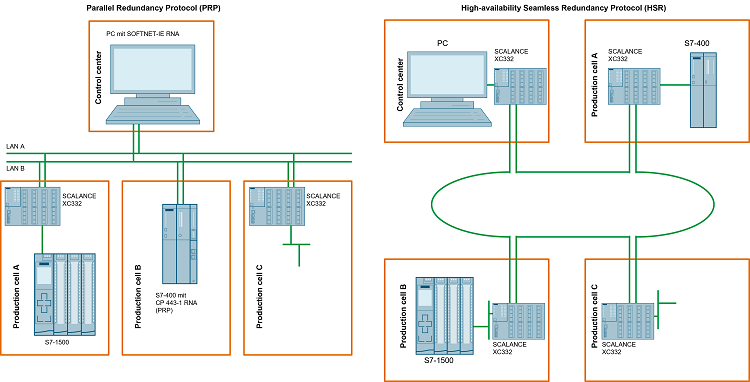

Setup and Configuration of a Redundancy via PRP and HSR
https://support.industry.siemens.com/cs/document/78790945/
The enhanced level of automation of industrial plants in order to raise productivity and quality, increases the dependency on the availability of automation systems at the same.
Failure of an automation system can cause high costs due to production failure and downtimes. If Ethernet is used in automation, specific protocols and appropriate hardware have to ensure the availability.
Time and security-critical applications in plants do not tolerate downtime. The implementation of a redundancy without changeover (bumpless) has highest priority here.
The automation task consists in allowing bumpless redundancy for a sophisticated industrial application.
Solution
To implement the automation task and to fulfill the mentioned requirements, this application provides two approaches on the basis of the mechanism standardized in IEC 62439-3:
Network redundancy PRP (Parallel Redundancy Protocol) with the SCALANCE XC300, XR300, XC400, XR500, as well as SOFTNET IE RNA and CP443-1 RNA.
Media redundancy HSR (High-availability Seamless Redundancy Protocol) with the SCALANCE XC300, XR300, XC400, XR500.
The advantages of these mechanisms are:
Very high plant availability due to parallel data transfer in ring-shaped or separate network structures.
Application also in time-critical applications due to bumpless switchover.
Possible integration into network management systems.
Fast commissioning without mandatory configuration.
The following main points are discussed in this application:
Basics on PRP and HSR in view of setup, configuration and function.
Setup of a PRP/HSR network with SIMATIC NET components.
Demonstration of redundancy based on a small simulation program.
Documentation and Project
https://support.industry.siemens.com/cs/attachments/78790945/78790945_RNA_DOC_V3_0_en.pdf
https://support.industry.siemens.com/cs/attachments/78790945/78790945_RNA_S7-1500_TIA_Portal_V19_PROJ_V3_0.zip
https://support.industry.siemens.com/cs/attachments/78790945/78790945_RNA_S7-400_PRP_STEP7_V5_7_PROJ_V3_0.zip
https://support.industry.siemens.com/cs/attachments/78790945/78790945_RNA_S7-400_HSR_STEP7_V5_7_PROJ_V3_0.zip
Download Url File name
https://dfiles.eu/files/8q5mn8taj 78790945_RNA_DOC_V3_0_en.pdf
https://dfiles.eu/files/hgf24y92c 78790945_RNA_S7-1500_TIA_Portal_V19_PROJ_V3_0.zip
https://dfiles.eu/files/dsutegm8k 78790945_RNA_S7-400_PRP_STEP7_V5_7_PROJ_V3_0.zip
https://dfiles.eu/files/ncrrn8dee 78790945_RNA_S7-400_HSR_STEP7_V5_7_PROJ_V3_0.zip |
|
