Add connection for TP700 comfort panel


Post new topic   Reply to topic    plc.myforum.ro Forum Index -> Schneider Electric
View previous topic :: View next topic
Author Message
Denis_86_Divny
Junior
Junior


Joined: 11 Nov 2019
Posts: 6
Location: Stary Oskol
PostPosted: 18/11/2019 07:58    Post subject: Add connection for TP700 comfort panel Reply with quote
Good day.

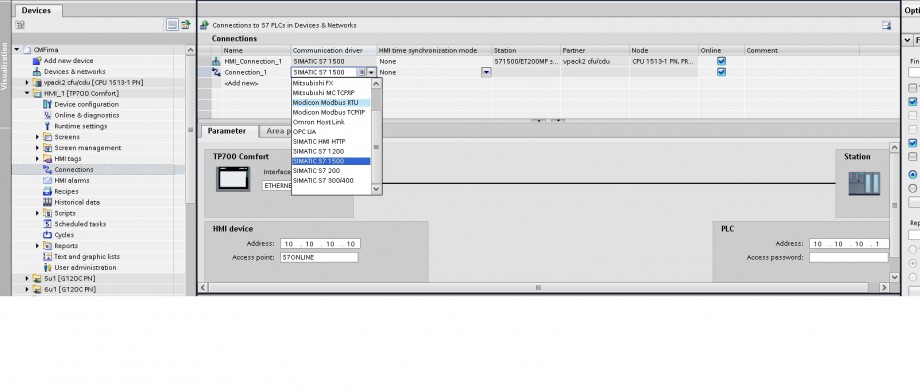

Tell me how in Tia v15 to organize a connection (second Connection) between two devices with the TP700 comfort panel and in our case ELAU PacDrive C400 A8
https://wdho.ru/4Lo6
Back to top
View user's profile Send private message
19W69
Junior
Junior


Joined: 04 Jun 2019
Posts: 11
PostPosted: 18/11/2019 10:31    Post subject: Reply with quote
Add connection for TP700 comfort panel

You cannot connect to TP700 via PROFINET eventually PROFIBUS
How do you integrate C400 in TIA project with gsdml or gsd files?
Probably with PROFIBUS and in that case you have to use a Master Profibus ELAU C400 Drive and a Slaves as TP700 and eventually a
ET 200S, IM151-8 PN/DP CPU or 6ES7 516-3AN01-0AB0 PN/DP as Profibus Slave.
