6Bit conversion to VDA 5500 with SIMATIC RF600 in the TIA Portal
https://support.industry.siemens.com/cs/document/109821919/
Due to the limited EPC and user memory on UHF transponders, it is necessary in some cases to store the EPC ID or user data with a 6-bit encoding on the transponder. The SIMATIC RF600 series readers support 6-bit coding according to VDA 5500 ("RFID for the identification of vehicles in production, logistics and services").

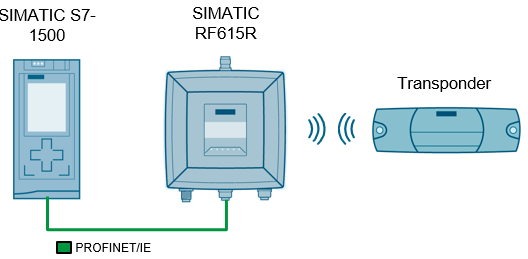

This example shows how to handle the 6-bit data in an S7-1200/1500 Controller. A SIMATIC RF615R reader is connected to a SIMATIC S7-1500 via PROFINET. TIA Portal V18 is used as the development environment.

6Bit conversion to VDA 5500 with SIMATIC RF600 6Bit conversion to VDA 5500 with SIMATIC RF600

6Bit conversion to VDA 5500 with SIMATIC RF600 6Bit conversion to VDA 5500 with SIMATIC RF600

The following use cases are presented:
Initializing a transponder with a 6-bit coded EPC ID
Reading EPC IDs (formatted with 6-bit VDA 5500 characters) and converting them into an array of 8-bit ASCII characters
Writing the user memory of the transponder 6-bit VDA coded (header + data)
Read user memory of the transponder (6-bit VDA coded) and output readable user data (8-bit ASCII)
Each use case has its own function block and the corresponding instance data block. You can operate the use cases via ready-made tag tables.

The application example uses the conversion blocks of the "LIIDF" library and the identification blocks of the TIA Portal library "Option Packages/SIMATIC Ident". The "LIIDF" library can be found in the "Download" section of this article.

Download Library "LIIDF"
The .zip file contains the conversion blocks for TIA Portal V16 and TIA Portal V18
https://support.industry.siemens.com/cs/attachments/109821919/LIIDF_V0100_03.zip
https://support.industry.siemens.com/cs/attachments/109821919/109821919_LIIDF_V1_0_3_en.pdf

Download Application
https://support.industry.siemens.com/cs/attachments/109821919/SIMATIC_RF600_6Bit_Converting.zip
https://support.industry.siemens.com/cs/attachments/109821919/109821919_SIMATIC_RF600_6Bit_Convert_V10_en.pdf

https://ulozto.net/tamhle/E6WAXJh5WC7l/

[URL=https://www.file-upload.net/download-15182584/109821919_SIMATIC_RF600_6Bit_Convert_V10_en.pdf.html]109821919_SIMATIC_RF600_6Bit_Convert_V10_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15182583/SIMATIC_RF600_6Bit_Converting.zip.html]SIMATIC_RF600_6Bit_Converting.zip[/URL]
[URL=https://www.file-upload.net/download-15182582/109821919_LIIDF_V1_0_3_en.pdf.html]109821919_LIIDF_V1_0_3_en.pdf[/URL]
[URL=https://www.file-upload.net/download-15182585/LIIDF_V0100_03.zip.html]LIIDF_V0100_03.zip[/URL]
