 Posted: 26/01/2021 17:44 Post subject: 3SE63 RFID safety switch to SIMATIC S7 fail-safe modules |
 |
|

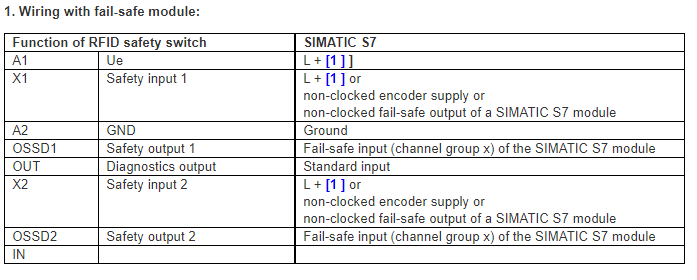

How do you connect the 3SE63 RFID safety switch to SIMATIC S7 fail-safe modules?
https://support.industry.siemens.com/cs/document/57252058/
The RFID 3SE63 safety switch on SIMATIC S7 can be connected to the following fail-safe SIMATIC S7 modules and operated in compliance with the suggested parameter settings.
2. Parameter setting of the SIMATIC S7 fail-safe inputs:
Ø Encoder supply: external or via module without short-circuit test (internal, block short-circuit test)
For applications in compliance with SIL3 / Kat4 / Ple the following holds in addition
Ø Evaluation of the encoders: 1002 (2v2) evaluation
Ø Type of encoder interconnection : 2-channel equivalent
Ø Discrepancy time:> = 50ms

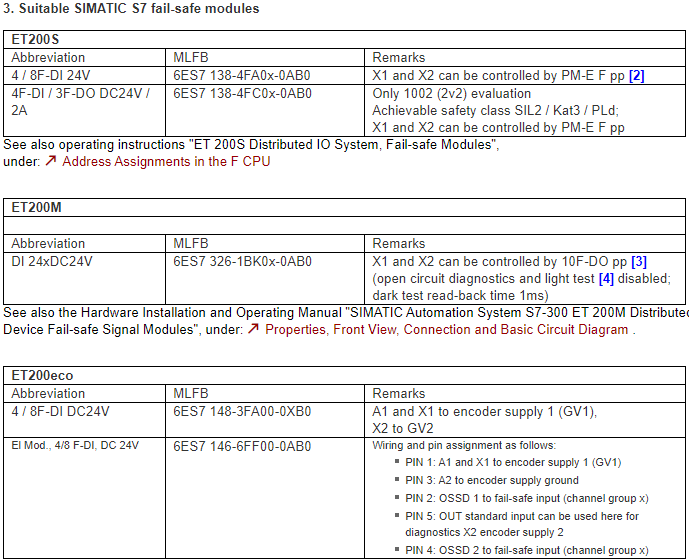

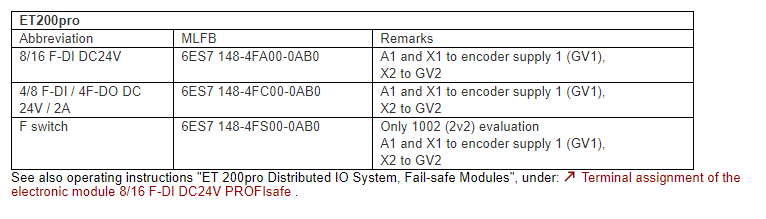

3. Suitable SIMATIC S7 fail-safe modules

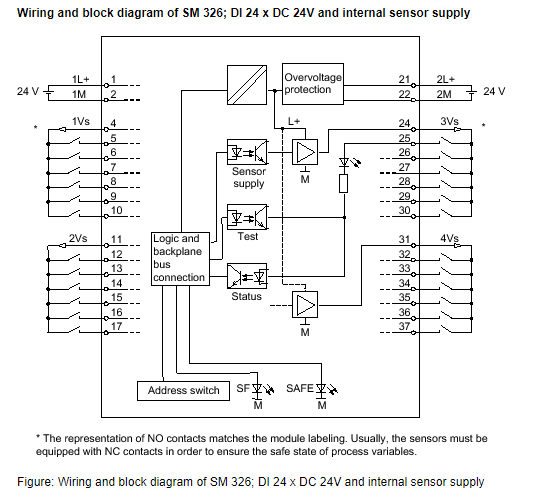

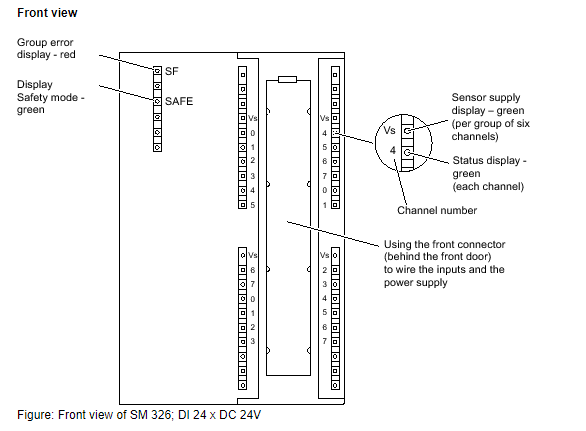

Properties, Front View, Connection Diagram, and Block Diagram Order number 6ES7326-1BK02-0AB0
Properties
| Code: | SM 326; DI 24 x DC 24V has the following properties:
24 inputs, electrically isolated groups of 12 inputs
Rated input voltage 24 V DC
Suitable for switches and 2-/3-/4-wire proximity switches (BEROs)
Four short circuit-proof sensor supplies for each of the 6 channels, electrically isolated in groups of 2

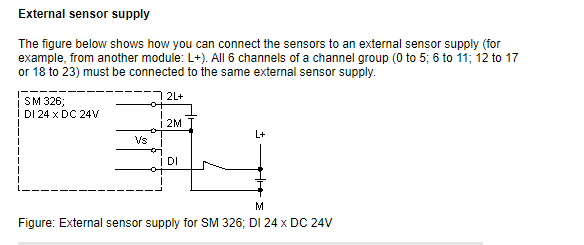

External sensor supply possible
Group fault display (SF)
Safety mode display (SAFE)
Status display for each channel (green LED)
Configuration in Run (CiR) supported in standard mode (non-safety mode)
Programmable diagnostics functions
Assignable diagnostic interrupt
Supports operation in standard and safety mode
SIL3/Cat.4/PLe can be achieved without safety protector

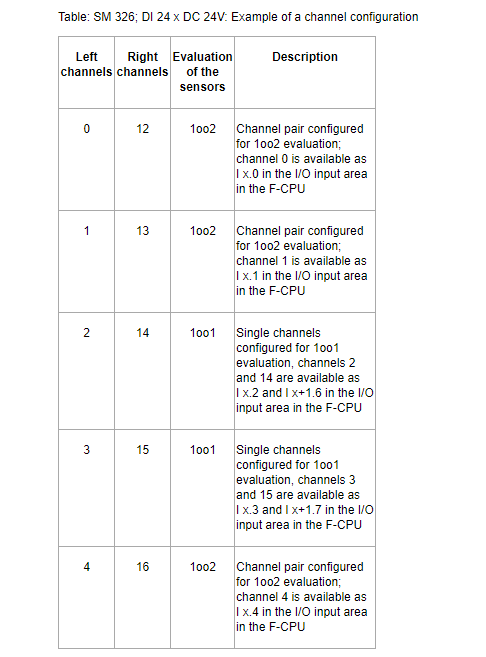

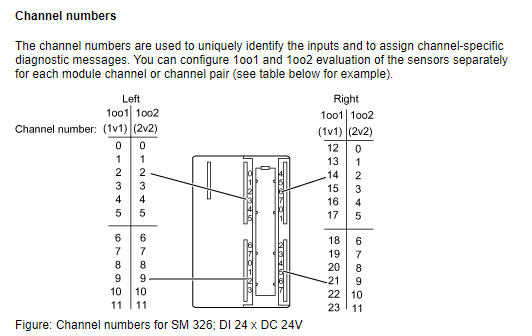

1oo1 and 1oo2 evaluation can be configured separately for each channel
Simplified PROFIsafe address assignment
I&M identification data
can be used with PROFINET IO
supports time stamping
Acknowledgment possible after voltage dip |
Note
The fail-safe performance characteristics in the technical data apply to a proof-test interval of 10 years and a mean time to repair of 100 hours.
Download
https://fastshare.cz/15656281/et-200pro-distributed-i-o-system-fail-safe-modules-terminal-assignment-of-8-16-f-di-dc24v-profisafe-electronic-module.pdf
https://fastshare.cz/15656282/et-200s-distributed-i-o-system-address-assignments-in-the-f-cpu.pdf
https://fastshare.cz/15656285/et200al-manual-collection-en-us.pdf
https://fastshare.cz/15656288/et200eco-manual-collection-en-us.pdf
https://fastshare.cz/15656289/et200eco-pn-cm-8xio-link-di4x24vdc-m12l-manual-manual-en-us-en-us.pdf
https://fastshare.cz/15656291/et200eco-pn-f-di-8-f-dq-3-manual-en-us-en-us.pdf
https://fastshare.cz/15656293/et200ecopn-di-8x24vdc-m12l-8xm12-manual-en-us-en-us.pdf
https://fastshare.cz/15656294/et200ecopn-di-16x24vdc-m12l-8xm12-manual-en-us-en-us.pdf
https://fastshare.cz/15656295/et200ecopn-diq-16x24vdc-05a-2a-m12l-8xm12-manual-en-us-en-us.pdf
https://fastshare.cz/15656296/et200ecopn-dq-8x24vdc-2a-m12l-8xm12-manual-en-us-en-us.pdf
https://fastshare.cz/15656297/et200ecopn-dq-8x24vdc-05a-m12l-8xm12-manual-en-us-en-us.pdf
https://fastshare.cz/15656298/et200ecopn-m12l-system-manual-en-us-en-us.pdf
https://ulozto.net/tamhle/5bOjakXpNnjw/
https://anonfiles.com/V2P6U1C6pd/ET_200pro_Distributed_I_O_System_-_Fail-Safe_Modules_-_Terminal_Assignment_of_8_16_F-DI_DC24V_PROFIsafe_Electronic_Module_pdf
https://anonfiles.com/X5PdU7C6p4/ET_200S_Distributed_I_O_System_-_Address_assignments_in_the_F-CPU_pdf
https://anonfiles.com/b2QbUbC9pa/et200ecopn_di_8x24vdc_m12l_8xm12_manual_en-US_en-US_pdf
https://anonfiles.com/dfQ4UbC0p8/et200eco_pn_cm_8xio-link_di4x24vdc_m12l_manual_manual_en-US_en-US_pdf
https://anonfiles.com/f0Q2UcC3pb/et200ecopn_di_16x24vdc_m12l_8xm12_manual_en-US_en-US_pdf
https://anonfiles.com/heQaUcC2pd/et200ecopn_diq_16x24vdc_05a_2a_m12l_8xm12_manual_en-US_en-US_pdf
https://anonfiles.com/nbQeU3C7pa/et200ecopn_dq_8x24vdc_2a_m12l_8xm12_manual_en-US_en-US_pdf
https://anonfiles.com/pbQfU0Capf/et200ecopn_dq_8x24vdc_05a_m12l_8xm12_manual_en-US_en-US_pdf
https://anonfiles.com/t3Q7U0C6p8/et200ecopn_m12l_system_manual_en-US_en-US_pdf
https://anonfiles.com/z4Q4U3C4pa/et200eco_pn_f_di_8_f_dq_3_manual_en-US_en-US_pdf
https://anonfiles.com/R0Q5U8C9pd/et200al_manual_collection_en-US_pdf
https://anonfiles.com/j6R8UdC4pf/et200eco_manual_collection_en-US_pdf |
|
