3RW55 soft starter - Reading and writing data sets with S7-1500 and HMI connection
https://support.industry.siemens.com/cs/document/109772107/3rw55-soft-starter-reading-and-writing-data-sets-with-s7-1500-and-hmi-connection
his library and the application example facilitate the use of the 3RW55 Soft Starter by implementing the reading and writing of the data sets for the corresponding soft starter into your project.
This entry provides an application example and a library which makes it easier for you to integrate the 3RW55 Soft Starter into your application. The library offers you the possibility to simply adopt the blocks and HMI screens used in the application example and use them for your project.

The parameters of the 3RW55 Soft Starter are read out via the functions RDREC and WRREC data sets. The read-out is exemplary shown here with a 3RW5513 Soft Starter. The application example is flexibly designed and can easily be adjusted to your setup.

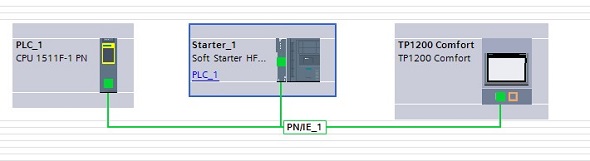

The following image shows the setup that is described in the application example.
3RW55 soft starter Reading writing data sets with S7-1500 3RW55 soft starter Reading writing data sets with S7-1500

3RW55 soft starter Reading writing data sets with S7-1500 3RW55 soft starter Reading writing data sets with S7-1500

Documentation and example project tia 15.1
https://support.industry.siemens.com/cs/attachments/109772107/3RW55_reading_writing_datasets.pdf
https://support.industry.siemens.com/cs/attachments/109772107/SoftStarterFinal_V15.1.zap15_1.zip
Block library
https://support.industry.siemens.com/cs/attachments/109772107/LibraryOfDataSets.zip
