 Posted: 08/12/2021 18:22 Post subject: 3RS2 temperature monitoring relay 3SK2 safety relay |
 |
|
Safe temperature monitoring and protective door monitoring with tumbler up to SIL 1 or PLC with a 3RS2 temperature monitoring relay and 3SK2 safety relay
https://support.industry.siemens.com/cs/document/109780388/

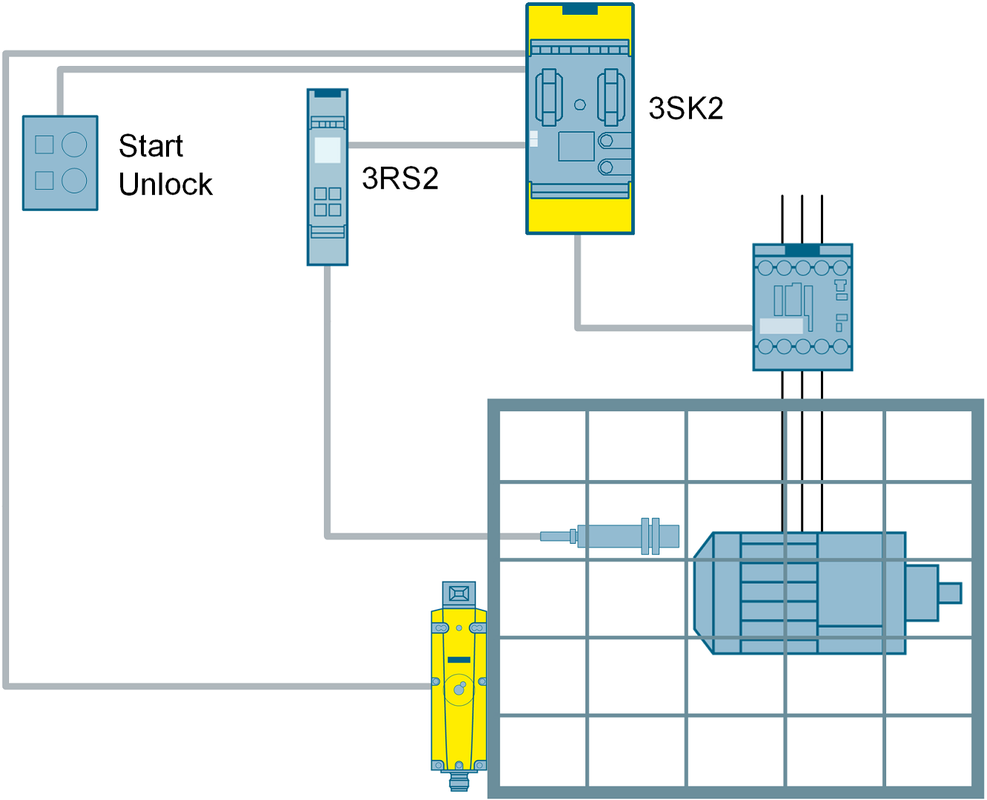

Access to an area with bodies that can develop a corresponding heat is prevented by an enclosure with a protective door. The 3SK2 monitors the position of the protective door and switches off the motor in a safety-oriented manner if access is requested. Locking of the protective door is maintained by the 3SK2 until the 3RS2 signals to the 3SK2 that the temperature has fallen below a defined limit
Operating principle
According to EN ISO 12100, Annex B, there is a potential hazard "burns due to atingere with high-temperature material", which must be evaluated and reduced if necessary during the risk assessment. Bodies that can develop a corresponding heat are enclosed. However, for service work, for example, the area must be accessible via a protective door. In the event of an access request, the 3SK2 safety relay switches off the motor via a contactor in a safety-oriented manner. The 3RS2 signals the undershooting of a defined temperature limit to the 3SK2 in a safety-oriented manner up to SIL 1 / PL c. The 3SK2 then releases the protective door and the service personnel can enter the area.
A 3RS26 or 3RS28 temperature monitoring relay from the 3RS2 series is used here. These two device types can be used in safety applications up to SIL 1 / PLC.
https://support.industry.siemens.com/cs/attachments/109780388/TIA_Portal_TemperatureMonitoring_Door_Tumbler_3RS2_SIL1.zip
https://support.industry.siemens.com/cs/attachments/109780388/Safety-ES_TemperatureMonitoring_Door_Tumbler_3RS2_SIL1.zip
https://support.industry.siemens.com/cs/attachments/109780388/TemperatureMonitoring_Door_Tumbler_3RS2_SIL1_en_V2.zip
https://support.industry.siemens.com/cs/attachments/109780388/Wiring_TemperatureMonitoring_Door_Tumbler_3RS2_SIL1.zip
https://support.industry.siemens.com/cs/attachments/109772132/manual_temp_monitoring_relay_en-US.pdf
https://ulozto.net/tamhle/EA6o3LJrLAEq/ |
|
